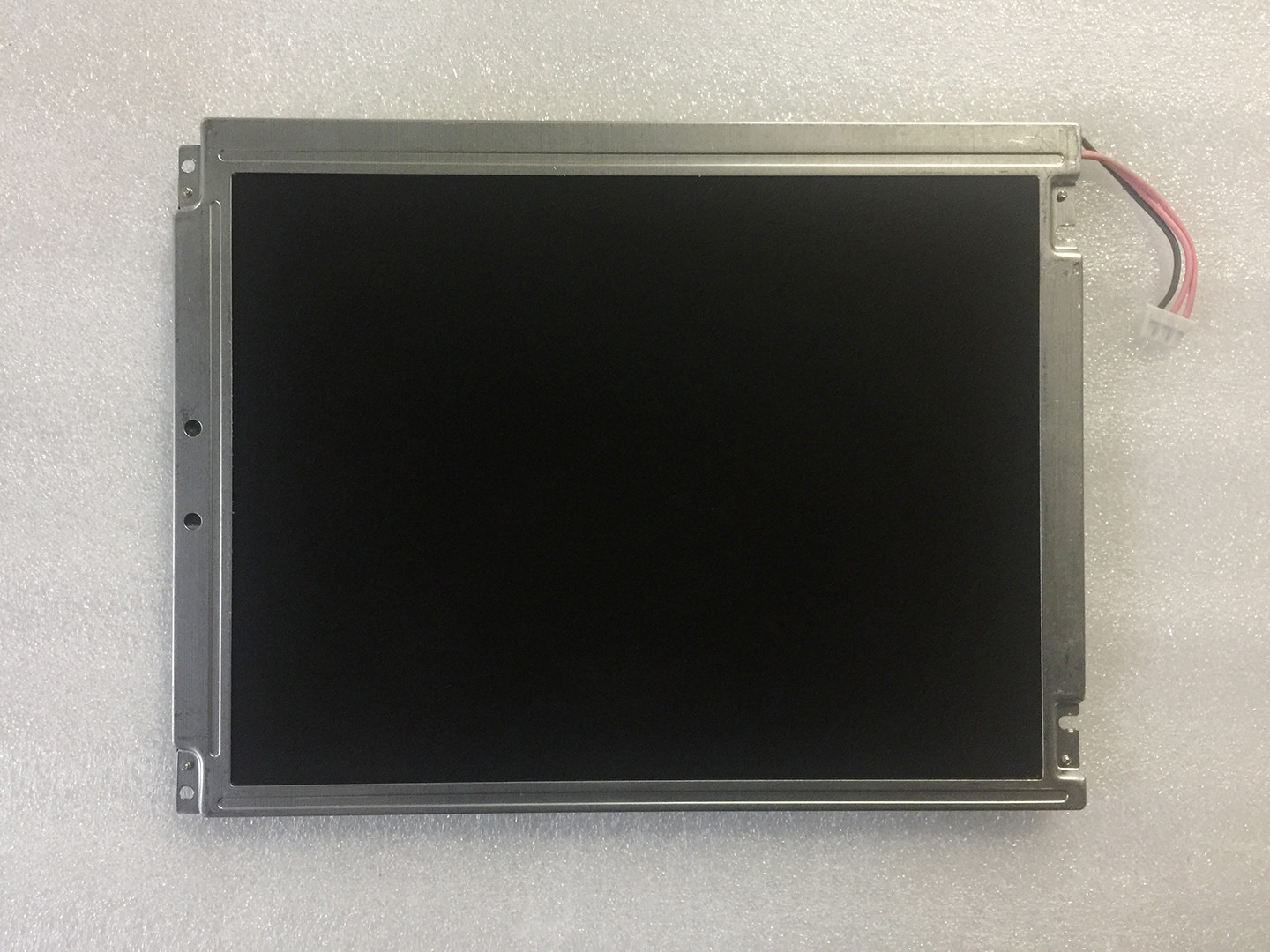

NL6448BC33-63D LVDS 10.4 Inch 640 ×480 450cd/m² NEC TFT LCD screen

  • 1
  • 2

Brand Name : NEC

Model Number : NL6448BC33-63D

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Working Day

Packaging Details : With Original Factory Package

Price : 50USD

Size : 10.4 Inch

Resolution : 640(RGB)×480, VGA, 76PPI

Panel Type : a-Si TFT-LCD , LCM

Pixel Format : RGB Vertical Stripe

Brightness : 450 cd/m² (Typ.)

Contrast Ratio : 600:1 (Typ.) (TM)

Viewing Angle : 80/80/80/60 (Typ.)(CR≥10)

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Voltage Supply : 3.3V (Typ.)

Contact Now

1.HIGHEST QUALITY STANDARD DISPLAYS


As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria

2.NEC NL6448BC33-63D Mechanical Features:

Screen Size : 10.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
640(RGB)×480, VGA RGB Vertical Stripe 0.110×0.330 mm 0.330×0.330 mm [76PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
211.2×158.4 mm 215.4×161.8 mm 243×185.1 mm 10.5±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
475/500g (Typ./Max.) - Antiglare, Hard coating (3H)
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel

3. NEC NL6448BC33-63D Optical Features:

Basic Information : Luminance Work Mode Contrast Ratio
450 cd/m² (Typ.) TN, Normally White, Transmissive 600:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 80/80/80/60 (Typ.)(CR≥10) 6/19 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K/16.7M (6-bit / 6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
41% 57% 43%
DCI-P3 Coverage Rec.2020 Coverage Remarks
43% 31% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.40 (Typ./Max.)(5 points)

4.NEC NL6448BC33-63D Backlight Features:

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type (Top side) 50K(Typ.) 2 pcs Straight Replaceable (104LHS46)
CCFL Electrical : Input Voltage Input Current Power Consumption
520V (Typ.) 2.0/5.0/5.5mA (Min./Typ./Max.)
Operating Frequency Startup Voltage
50/72KHz (Min./Max.) 850/1150V (Min.)(Ta=+25/-20℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-04VS-1 1 pcs 4 pins 4.0 mm BLL-4PINS-HHNL

5.FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
