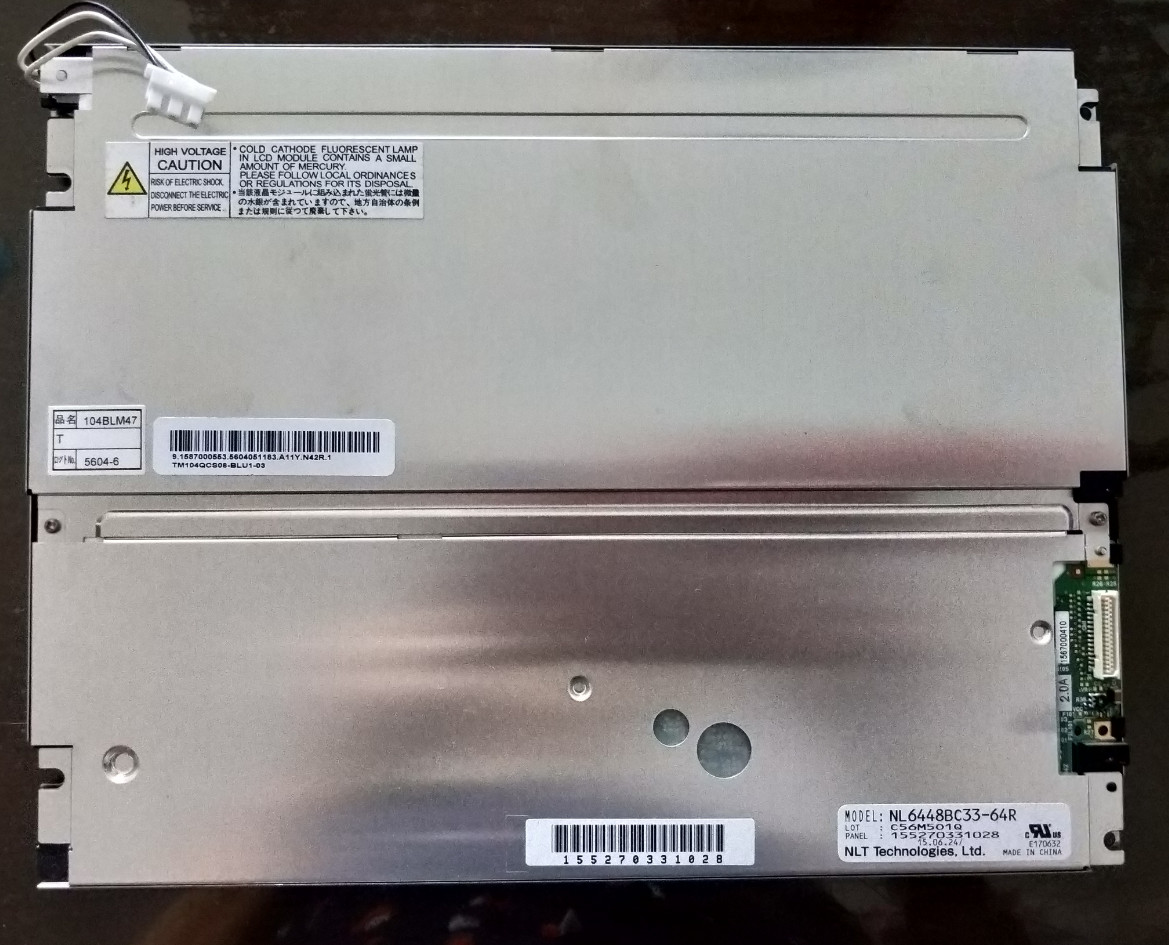

NL6448BC33-64R NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

NL6448BC33-64R NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

Brand Name : NEC

Model Number : NL6448BC33-64R

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 500PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : NL6448BC33-64R

BRAND : NEC

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 450CD/M2

Lamp Type : CCFL

TEMPERATURE RANGE : Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C

Viewing Angle : 80/80/80/60 (Typ.)(CR≥10)

Contact Now

NEC NL6448BC33-64R Application Details

Basic Info : Panel Brand Panel Model NL6448BC33-64R
Diagonal Size 10.4" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -10 ~ 70 °C Storage Temp. -20 ~ 80 °C
RoHS State Vibration Rating 2.0G (19.6 m/s²)

NEC NL6448BC33-64R Mechanical Details

Pixel Features : Pixel Format 640(RGB)×480 [VGA] Dot Pitch 0.110×0.330 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.330×0.330 mm (H×V) [76PPI]
Mechanical Size : Display Area 211.2×158.4 mm (H×V) Bezel Area 215.4×161.8 mm (H×V)
Outline Dim. 243×185.1 mm (H×V) Outline Depth 10.5±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Features : Weight 475/500g (Typ./Max.) Surface Clear, Hard coating (3H)

NEC NL6448BC33-64R Optical Details

Basic Information : Brightness 450 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 6/19 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamut : NTSC Ratio 41% sRGB 57% coverage
Adobe RGB 43% coverage DCI-P3 43% coverage
Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

NEC NL6448BC33-64R Electronics Details

Frame Frequency : 60Hz
Reverse Scan : Yes (180°)
Power Consumption : 6.2W (Typ.)
Time Controller (T-CON) : Embedded T-CON

NEC NL6448BC33-64R Backlight Details

Back-light Features: Lamp Shape Straight Lamp Type CCFL Life Time -
Replacement Replaceable (104LHS47) Amount 2 pcs Position Edge light type (Top side)
Lamp Electrical : Voltage Input 520V (Typ.) Current Input 2.0/5.0/5.5mA (Min./Typ./Max.)
Frequency 50/70KHz (Min./Max.) Kick-off Voltage 850/1100V (Min.)(Ta=+25/-20℃)
Consumption 5.2W (Typ.)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLL-3PINS-LHH

NEC NL6448BC33-64R Interface Details

Signal Systerm : CMOS (1 ch, 6-bit) Logic Voltage 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical : Voltage Input 3.3/5.0V (Typ.) Current Input 300/200mA (Typ.)
Consumption 0.99W (Typ.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
HRS DF9C-31P-1V 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010F

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×185.1(H)×11(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 475/500g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, NL6448BC33-64R can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side), external backlight driver is additionally needed. NL6448BC33-64R utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3/5.0V (Typ.)
