AUO C123HAN02.1 Application Details
| Basic Info : | Panel Brand Panel Model C123HAN02.1 Diagonal Size Application Panel Type a-Si TFT-LCD , LCM Model Alias - |
| Reliability : | Operating Temp. -30 ~ 85 °C Storage Temp. -40 ~ 95 °C RoHS State Vibration Rating 2.9G (28.4 m/s²) |
AUO C123HAN02.1 Mechanical Details
| Pixel Features : | Pixel Format 1920(RGB)×720 Dot Pitch 0.0507×0.1521 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.1521×0.1521 mm (H×V) [167PPI] |
| Mechanical Size : | Display Area 292.032×109.512 mm (H×V) Bezel Area 293.94×111.42 mm (H×V) Outline Dim. 310.75×129.86 mm (H×V) Outline Depth 12.08/16.23 (Typ./Max.) mm |
| Outline Features : | Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 8:3 (H:V) Shape Style |
| Holes & Brackets : | Rear mounting Pole (5 pcs) |
| Other Features : | Weight TBD Surface Antiglare |
AUO C123HAN02.1 Optical Details
| Basic Information : | Brightness 700 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 15/20 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity Wx:0.311; Wy:0.317 Color Numbers 16.7M (8-bit) Color Temperature 6710K Uniformity 1.25 (Max.)(9 points) |
| Dispaly Performance : | Outdoor Visibility Sunlight Readable Transmittance - |
AUO C123HAN02.1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
AUO C123HAN02.1 Backlight Details
| Back-light Features : | Lamp Type WLED Amount 8S4P Life Time 10K(Min.) (Hours) Replacement - Lamp Shape 4 strings Position Edge light type |
| Lamp Electrical : | Voltage Input 24/27.2V (Typ./Max.) Current Input 80mA (Typ.) |
| Interface Features : | Type FPC Position - Lamp Driver No |
| Interface Detail : | Brand Model Pin Pitch Pins Amount Configuration 0.5 mm 10 pins 1 pcs |
AUO C123HAN02.1 Interface Detail
| Signal Systerm : | LVDS (2 ch, 8-bit) Logic Voltage - |
| Signal Electrical : | Voltage Input 3.3V (Typ.) Current Input TBD |
| Interface Features : | Type Connector Position - |
| Connector Detail : | Brand Model Pin Pitch Pins Amount Configuration HRS 0.5 mm 40 pins 1 pcs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

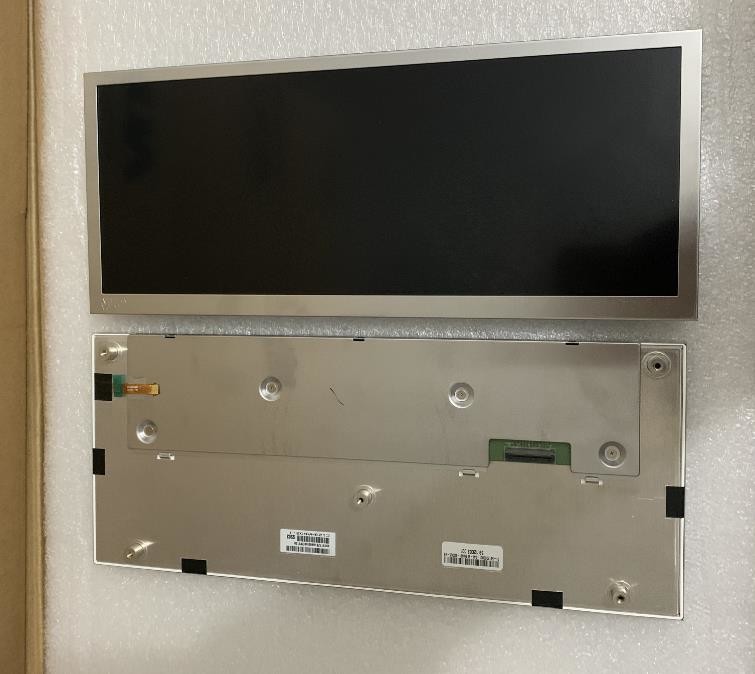

C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY Images
|
