AUO C061FW01 V0 Application Details
| Basic Information : | Brand | | Model | C061FW01 V0 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 6.1" | Alias | C061FW01 V.0 |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | | Vibration | - |
AUO C061FW01 V0 Mechanical Details
| Pixel Features : | Resolution | 480(RGB)×234 | Dot Pitch(mm) | 0.0945×0.3075 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2835×0.3075 (H×V) [88PPI] |
| Mechanical Size : | Active Area(mm) | 136.08(H) × 71.955(V) | Bezel Area(mm) | 138.2(H) × 74.0(V) |
| Outline Dim.(mm) | 149(H) × 82.9(V) | Depth(mm) | 5.8±0.3 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:9 (H:V) | Orientation | Landscape type |
| Other Spec : | Weight | 104±10.4g | Treatment | Antiglare (Haze 25%) |
AUO C061FW01 V0 Optical Details
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 15/20 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.330; Y:0.340 | Display Colors | Full color |
| Color Temperature | 5614K | White Uniformity | - |
AUO C061FW01 V0 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Need external T-CON |
AUO C061FW01 V0 Interface Details
| Signal Electrical : | Voltage Supply | 5.0/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 3.0/12.0/0.5/0.5mA (Typ.)(ICC/AIDD/IGH/IGL) |
| Signal Type : | TFT Specific Analog RGB | Signal Voltage | - |
| Interface Features : | Position | - | Type | FPC |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| | | 1 pcs | 30 pins | 0.5 mm |
AUO C061FW01 V0 Backlight Details
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 7S1P | Life Time | 10K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 25.2/28V (Typ./Max.) | Current Supply | 80mA (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | PHR-2 | 1 pcs | 2 pins | 2.0 mm | BLE-2PINS-AC |
| Backlight Driver : | No |
AUO C061FW01 V0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 60 pcs / box | 10 Kgs | 520×340×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

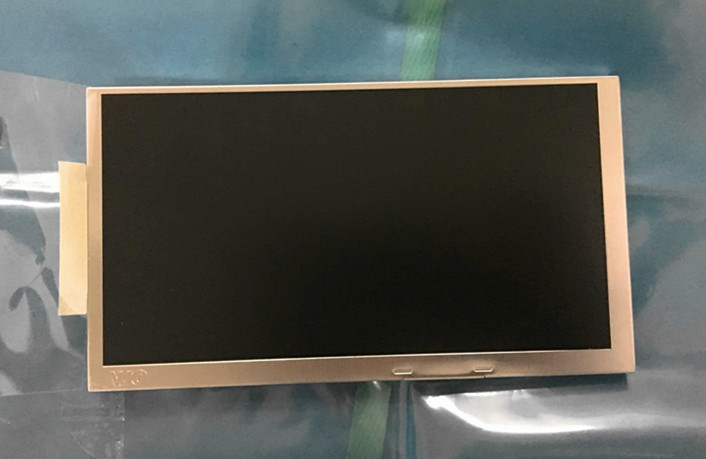

C061FW01 V0 AUO 6.1INCH 480×234RGB 600CD/M2 WLED Analog Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY Images
|
