NL6448AC33-18 NLT 10.4INCH 200CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Brand Name : NEC

Model Number : NL6448AC33-18

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 800PCS

Delivery Time : 2-3DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : NL6448AC33-18

BRAND : NEC

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

Lamp Type : CCFL

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

NEC NL6448AC33-18 Summary

NL6448AC33-18 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .

NEC NL6448AC33-18 Application Details

Basic Information :	Brand		Model	NL6448AC33-18
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	10.4"	Alias	-
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C
Environment :	RoHS		Vibration	-

NEC NL6448AC33-18 Mechanical Details

Pixel Features :	Resolution	640(RGB)×480, VGA	Dot Pitch(mm)	0.110×0.330 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.330×0.330 (H×V) [76PPI]
Mechanical Size :	Active Area(mm)	211.2(H) × 158.4(V)	Bezel Area(mm)	215.4(H) × 161.8(V)
Mechanical Size :	Outline Dim.(mm)	243(H) × 185.1(V)	Depth(mm)	10.5±0.5
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Mounting :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Spec :	Weight	470g (Typ.)	Treatment	Clear, Antireflection

NEC NL6448AC33-18 Optical Details

Basic Information :	Luminance(cd/m²)	200 (Typ.)	Contrast Ratio	150:1 (Typ.) (Transmissive)
	Viewing Angle	45/45/30/20 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	12 o'clock	Response(ms)	40 (Max.)(Tr)
Color Performance :	White Coordinate	-	Display Colors	262K (6-bit)

NEC NL6448AC33-18 Interface Details

Signal Electrical :	Voltage Supply	3.3/5.0V (Typ.)(VCC)		Current Supply	300/200mA (Typ.)(ICC)
Signal Type :	CMOS (1 ch, 6-bit)			Signal Voltage	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	HRS	DF9C-31P-1V	1 pcs	31 pins	1.0 mm	DRGB-31P1C6B-010D

NEC NL6448AC33-18 Backlight Details

Backlight Features:	Shape	Straight	Type	CCFL	Position	Edge light type (Top side)
Backlight Features:	Replacement	Replaceable	Quantity	2 pcs	Life Time	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
	JAE	LZ-5P-SL-SMT	1 pcs	5 pins	1.25 mm
	JAE	IL-Z-3PL-SMTY	1 pcs	3 pins	1.25 mm
Backlight Driver :	With Inverter
Driver Electrical :	Voltage Supply	12.0V (Typ.)		Current Supply	0.48A (Typ.)
Driver Electrical :	Consumption	5.76W (Typ.)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL6448AC33-18 NLT 10.4INCH 200CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Product Tags:

LVDS TFT LCD Display

Transmissive NEC TFT Display

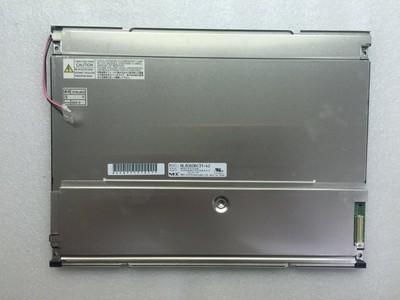

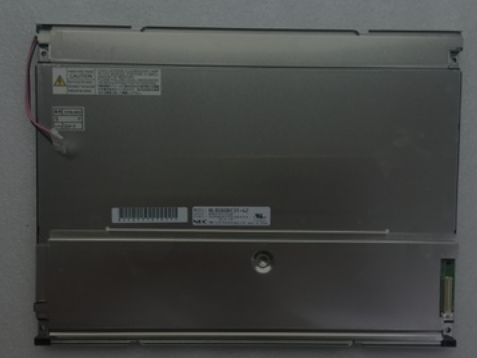

NL6448AC33-18 NLT 10.4INCH 200CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY Images
