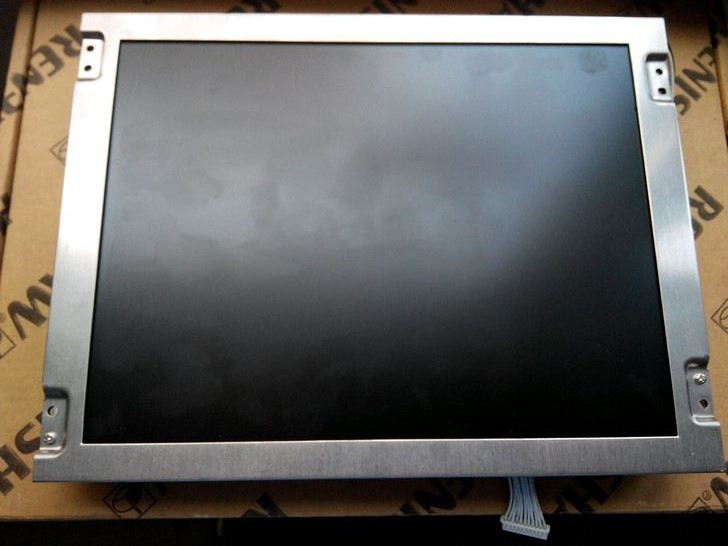

NEC NL6448BC33-54 Overview
The NL6448BC33-54 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NEC NL6448BC33-54 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | NL6448BC33-54 | a-Si TFT-LCD , LCM | - |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | -10 ~ 70 °C | -20 ~ 80 °C | 2.0G (19.6 m/s²) |
NEC NL6448BC33-54 Mechanical Features
| Panel Size : | 10.4 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 243×185.1 mm | 10.5±0.5 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | |
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 465/490g (Typ./Max.) | Clear, Hard coating (3H) |
NEC NL6448BC33-54 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 45/45/30/20 (Typ.)(CR≥10) | 12 o'clock | 15/23 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 8308K | 262K (6-bit) | X:0.286; Y:0.320 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 64% | 49% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
NEC NL6448BC33-54 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 180/300mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - |
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Position | Type | Interface |
| - | Connector | CMOS (1 ch, 6-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F |
NEC NL6448BC33-54 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| CCFL | Edge light type (Top side) | Straight | 2 pcs | - | Replaceable (104LHS35) |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
| 2.0/5.0/5.5mA (Min./Typ./Max.) | 520V (Typ.) | |
| Turn-on Voltage | Lamp Frequency |
| 850/1100V (Min.)(Ta=+25/-10℃) | 50/70KHz (Min./Max.) |
| Interface Features : | Position | Type | CCFL Driver |
| - | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LHH |
