NEC NL6448BC33-46D Overview
NL6448BC33-46D is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NEC NL6448BC33-46D Application Features
| Basic Information : | Brand Name | Model Name  1 Compatible | Type | Model Alias |
| | NL6448BC33-46D | a-Si TFT-LCD , LCM | - |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 0 ~ 65 °C | -20 ~ 80 °C | 2.0G (19.6 m/s²) |
| Application : | |
| Typical Features : | |
NEC NL6448BC33-46D Mechanical Features
| Screen Size : | 10.4" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 243×185.1 mm | 11.0±0.5 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 530/550g (Typ./Max.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
NEC NL6448BC33-46D Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 6 o'clock | 70/70/45/55 (Typ.)(CR≥10) | 6/40 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6914K | 262K (6-bit) | X:0.305; Y:0.330 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 48% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) |
NEC NL6448BC33-46D Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3/5.0V (Typ.)(VCC) | 280/200mA (Typ.)(ICC) | - |
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| CMOS (1 ch, 6-bit) | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

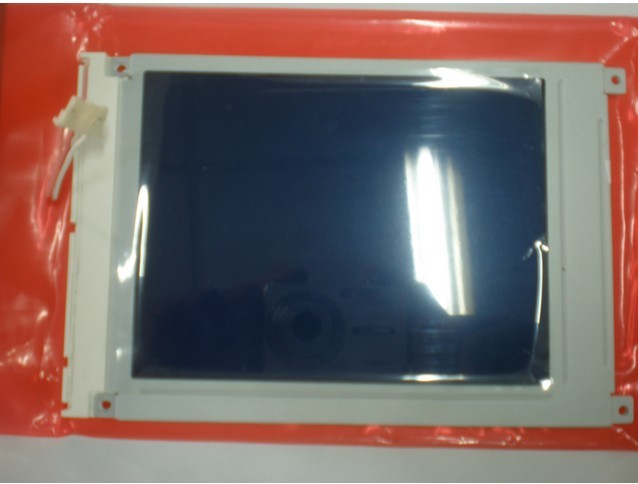

NL6448BC33-46D NLT 10.4INCH 350CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY Images
|
