C103VAN01.1 Hight Brightness Automotive TFT Displays Bar Display WLED Backlight

Brand Name : AUO

Model Number : C103VAN01.1

Certification : ISO9001

MOQ : 1PCS

Payment Terms : T/T, Western Union, PAYPAL, ESCROW

Supply Ability : 500PCS/MONTH

Delivery Time : 1-3 days

Packaging Details : With Original Package

SIZE : 10.3 inch

RESOLUTION : 1280(RGB)×480 (DVGA) 133PPI

BRIGHTNESS : 600 cd/m² (Min.)

TEMPERATURE : Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

Signal Interface : WLED , 10K hours , No Driver

Touch Panel : Without

Contact Now

C103VAN01.1 Hight Brightness Automotive TFT Displays Bar Display WLED Backlight

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. AUO C103VAN01.1 Mechanical Details:

Pixel Features :	Resolution	1280(RGB)×480, DVGA	Dot Pitch(mm)	0.0635×0.1905 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.1905×0.1905 (H×V) [133PPI]
Mechanical Size :	Active Area(mm)	243.84(H) × 91.44(V)	Bezel Area(mm)	245.9(H) × 95.2(V)
Mechanical Size :	Outline Dim.(mm)	260.35(H) × 113.73(V)	Depth(mm)	8.73/16.73 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	8:3 (H:V)	Orientation	Landscape type
Mounting :	Rear mounting holes (4-M3) on pole
Other Spec :	Weight	TBD	Treatment	Antiglare, Hard coating (3H)

3. AUO C103VAN01.1 Optical Details:

Basic Information :	Luminance(cd/m²)	600 (Min.)	Contrast Ratio	800:1 (Min.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	40 (Max.)(Tr+Td)
Color Performance :	White Coordinate	X:0.318; Y:0.321	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6275K	White Uniformity	1.25 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	80%	sRGB	98% coverage
	Adobe RGB	79% coverage	DCI-P3	83% coverage
	Rec.2020	60% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4.AUO C103VAN01.1 Backlight Details:

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	10K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	27/30.6V (Typ./Max.)		Current Supply	80/85mA (Typ./Max.)
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			1 pcs	8 pins	1.0 mm	BLE-8PINS-AANNCCC
Backlight Driver :	No

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

C103VAN01.1 Hight Brightness Automotive TFT Displays Bar Display WLED Backlight

Product Tags:

CCFL CSTN Automotive TFT Display

WLED FSTN Automotive TFT Display

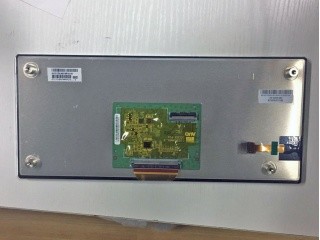

C103VAN01.1 Hight Brightness Automotive TFT Displays Bar Display WLED Backlight Images
