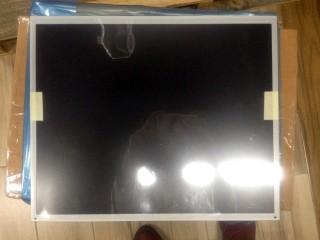

G170ETN01.0 17.0 AUO Life ≥ 50K hours 350 cd/m² (Typ.)85/85/80/80 (Typ.)(CR≥10)

  • 1
  • 2
  • 3

Brand Name : AUO

Model Number : G170ETN01.0

Certification : ISO9002

Place of Origin : CHINA

MOQ : 1PCS

Price : USD70

Payment Terms : T/T, Western Union, PAYPAL, ESCROW

Supply Ability : 3000PCS/MONTH

Delivery Time : 1-3 days

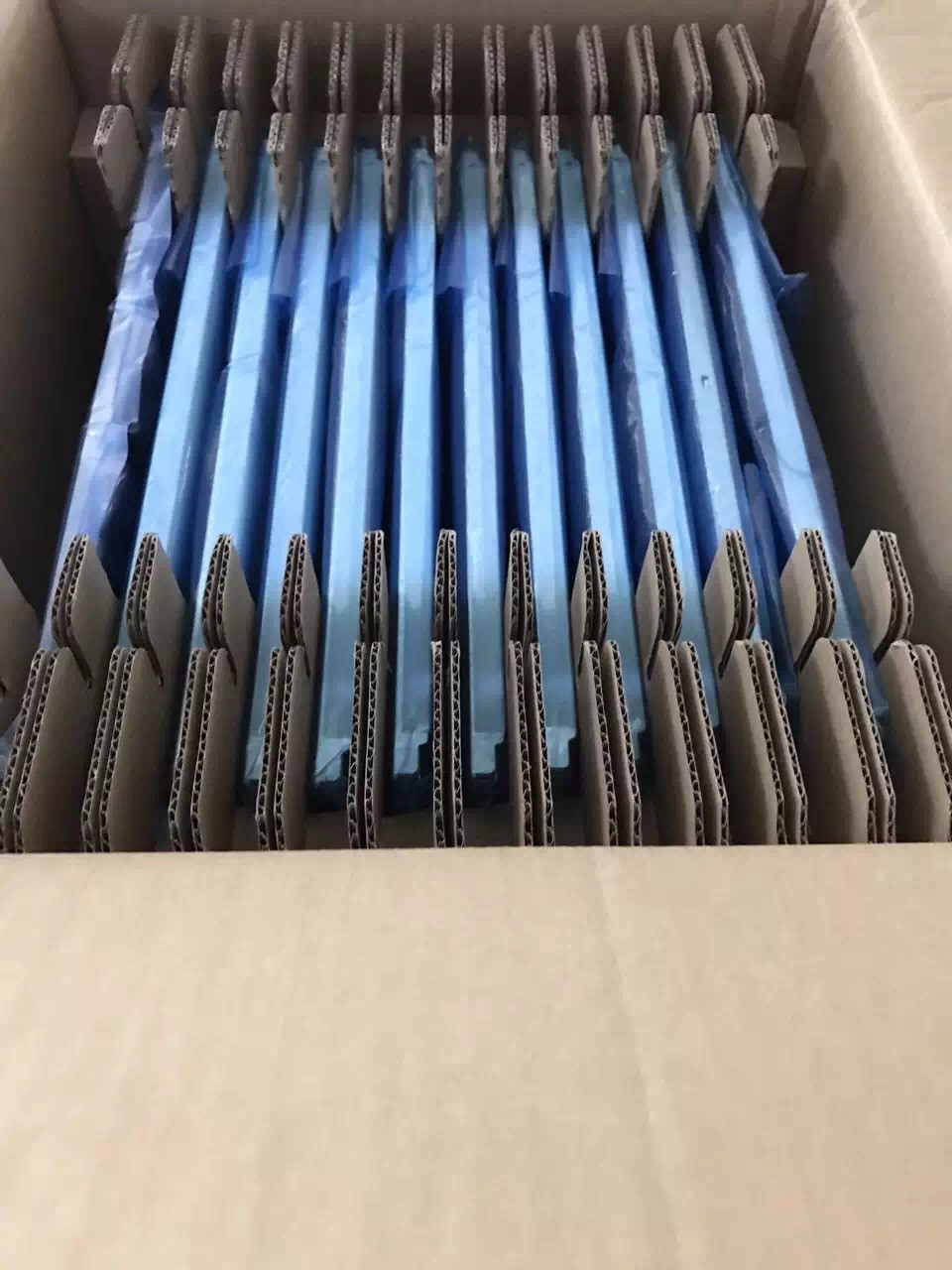

Packaging Details : 14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H

SIZE : 17.0 inch

PIXEL : 1280(RGB)×1024 [SXGA] 96PPI

BRIGHTNESS : 350 cd/m² (Typ.)

SIGNALTYPE : LVDS (2 ch, 8-bit) , 30 pins Connector

Viewing Angle : 85/85/80/80 (Typ.)(CR≥10)

Environment : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Bezel Opening : 341.6(W)×274.0(H) mm

Contact Now

AUO G170ETN01.0 Mechanical Details

Pixel Features : Resolution 1280(RGB)×1024, SXGA Dot Pitch(mm) 0.088×0.264 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.264×0.264 (H×V) [96PPI]
Mechanical Size : Active Area(mm) 337.92(H) × 270.336(V) Bezel Area(mm) 341.6(H) × 274.0(V)
Outline Dim.(mm) 358.5(H) × 296.5(V) Depth(mm) 18.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 5:4 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 1.30Kgs (Typ.) Treatment Antiglare, Hard coating (3H)

AUO G170ETN01.0 Optical Details

Basic Information : Luminance(cd/m²) 350 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive
Best View on - Response(ms) 3.5/1.5 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 73% sRGB 96% coverage
Adobe RGB 74% coverage DCI-P3 76% coverage
Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G170ETN01.0 Application Features

Basic Information : Brand Name Model Name Type Model Alias
G170ETN01.0 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 50 °C -20 ~ 60 °C

AUO G170ETN01.0 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
5.0V (Typ.) 0.59/0.71A (Typ./Max.) 2.95/3.54W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (2 ch, 8-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE FI-XB30SSL-HF15 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-190A

AUO G170ETN01.0 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type (Top side) 50K(Min.) - - Replaceable
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
E&T 3806K-F06Y-03R 1 pcs 6 pins 1.25 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
10.8/12.0/12.6V (Min./Typ./Max.) 0.8A (Typ.) 9.6W (Typ.
