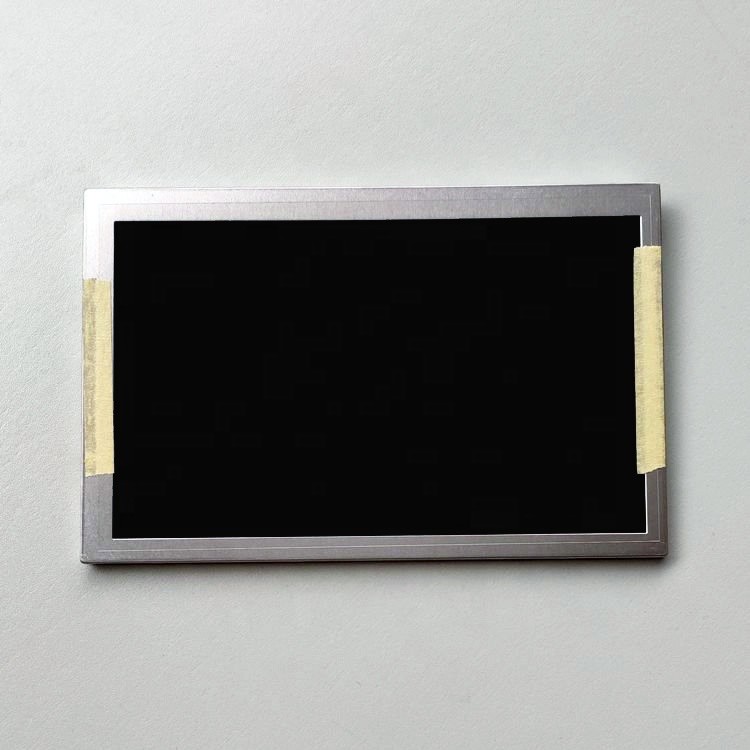

NEC NL2432HC22-50A Application Details
| Basic Info : | Panel Brand | | Panel Model | NL2432HC22-50A |
| Diagonal Size | 3.5" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | | Vibration Rating | 2.0G (19.6 m/s²) |
NEC NL2432HC22-50A Mechanical Details
| Pixel Features : | Pixel Format | 240(RGB)×320 [QVGA] | Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2235×0.2235 mm (H×V) [113PPI] |
| Mechanical Size : | Display Area | 53.64×71.52 mm (H×V) | Bezel Area | 57.2×75.12 mm (H×V) |
| Outline Dim. | 63.5×85 mm (H×V) | Outline Depth | 3.0/5.0 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | |
| Other Features : | Weight | 30.0/32.0g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
NEC NL2432HC22-50A Optical Details
| Basic Information : | Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) |
| Viewing Angle | 35/35/35/35 (Typ.)(CR＞5) | Optical Mode | TN, Normally White, Transflective |
| Viewing Direction | 6 o'clock | Response Time | 7/23 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.43/1.67 (Typ./Max.)(9 points) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 20% (Typ.) |
NEC NL2432HC22-50A Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 33K(Typ.) (Hours) |
| Replacement | - | Amount | 4S1P | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 14.9/16.4V (Typ./Max.) | Current Input | 14/15mA (Typ./Max.) |
| Consumption | 209mW (Typ.) |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
NEC NL2432HC22-50A Interface Details
| Signal Systerm : | CMOS (1 ch, 6-bit) + SPI | Logic Voltage | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC |
| Signal Electrical : | Voltage Input | 3.0V (Typ.) | Current Input | 16.5/26mA (Typ./Max.) |
| Consumption | 50mW (Typ.) |
| Interface Features : | Type | FPC | Position | - | |
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| | | 0.3 mm | 45 pins | 1 pcs |
