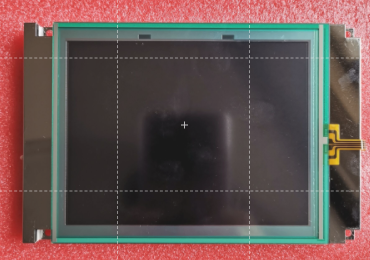

320×240 360nits QVGA 70PPI square tft display TX14D25VM1BPA 1.03W

Brand Name : KOE

Model Number : TX14D25VM1BPA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 2-3DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX14D25VM1BPA

BRAND : KOE

SIZE : 5.7INCH

RESOLUTION : 320×240, QVGA, 70PPI

BRIGHTNESS : 360 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

KOE TX14D25VM1BPA Overview

TX14D25VM1BPA is a 5.7" diagonal a-Si TFT-LCD display panel product from Kaohsiung Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

KOE TX14D25VM1BPA Application Details

Basic Info :	Panel Brand		Panel Model	TX14D25VM1BPA
	Diagonal Size	5.7"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	2.0G (19.6 m/s²)
Specific Features :
Remarks :	3 in 1 FPC

KOE TX14D25VM1BPA Mechanical Details

Pixel Features :	Pixel Format	320(RGB)×240 [QVGA]	Dot Pitch	0.120×0.360 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :	Display Area	115.2×86.4 mm (H×V)	Bezel Area	119.4×90.6 mm (H×V)
Mechanical Size :	Outline Dim.	131×102.2 mm (H×V)	Outline Depth	12.4/12.9 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Touch Screen :	Touch Points	-	TP Signal	-
Touch Screen :	TP Controller	Without touch controller	Touchscreen	4-wire Resistive Touch, F/G
Holes & Brackets :	Rear mounting Pole (4-Φ2.4)
Other Features :	Weight	200g (Typ.)	Surface	Antiglare, Hard coating (2H

KOE TX14D25VM1BPA Optical Details

Basic Information :	Brightness	360 cd/m² (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Viewing Angle	60/60/75/55 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	12 o'clock	Response Time	45 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	6638K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	59%	sRGB	77% coverage
	Adobe RGB	59% coverage	DCI-P3	61% coverage
	Rec.2020	44% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	No	Transmittance	77% (Typ.)

KOE TX14D25VM1BPA Backlight Details

Back-light Features:	Lamp Shape	Array	Lamp Type	WLED	Life Time	50K(Typ.) (Hours)
Back-light Features:	Replacement	-	Amount	3S5P	Position	Edge light type
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	3.3±0.3V		Current Input	312/342mA (Typ./Max.)
Driver Electrical :	Consumption	1.03W (Typ.)

KOE TX14D25VM1BPA Interface Details

Signal Systerm :	CMOS (1 ch, 6-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	115/130mA (Typ./Max.)
Signal Electrical :	Consumption	380mW (Typ.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	JAE	FA5B040HP1	0.5 mm	40 pins	1 pcs
