NEC NL160120AC27-32 Application Details
| Basic Detail : | Manufacturer | | Model Name | NL160120AC27-32 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | NL160120AC27-40 |
| Panel Size | 21.3 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS | |
| Features : | |
NEC NL160120AC27-32 Optical Details
| Basic Information : | Luminance | 900 cd/m² (Typ.) | Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20/20 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7502K | White Uniformity | 1.25 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 98% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
NEC NL160120AC27-32 Mechanical Details
| Pixel Features : | Number of Pixel | 1600(RGB)×1200 [UXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] |
| Physical Size : | Active Viewing | 432(W)×324(H) mm | Overall Dim. | 457(W)×350(H) mm |
| Bezel Opening | 438.2(W)×330.0(H) mm | Overall Depth | 21.5/23.0 (Typ./Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass | 2.80/2.98Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
NEC NL160120AC27-32 Interface Details
| Signal Electrical : | Input Current | 300/400mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19G-30P-1H(56) | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-170B |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

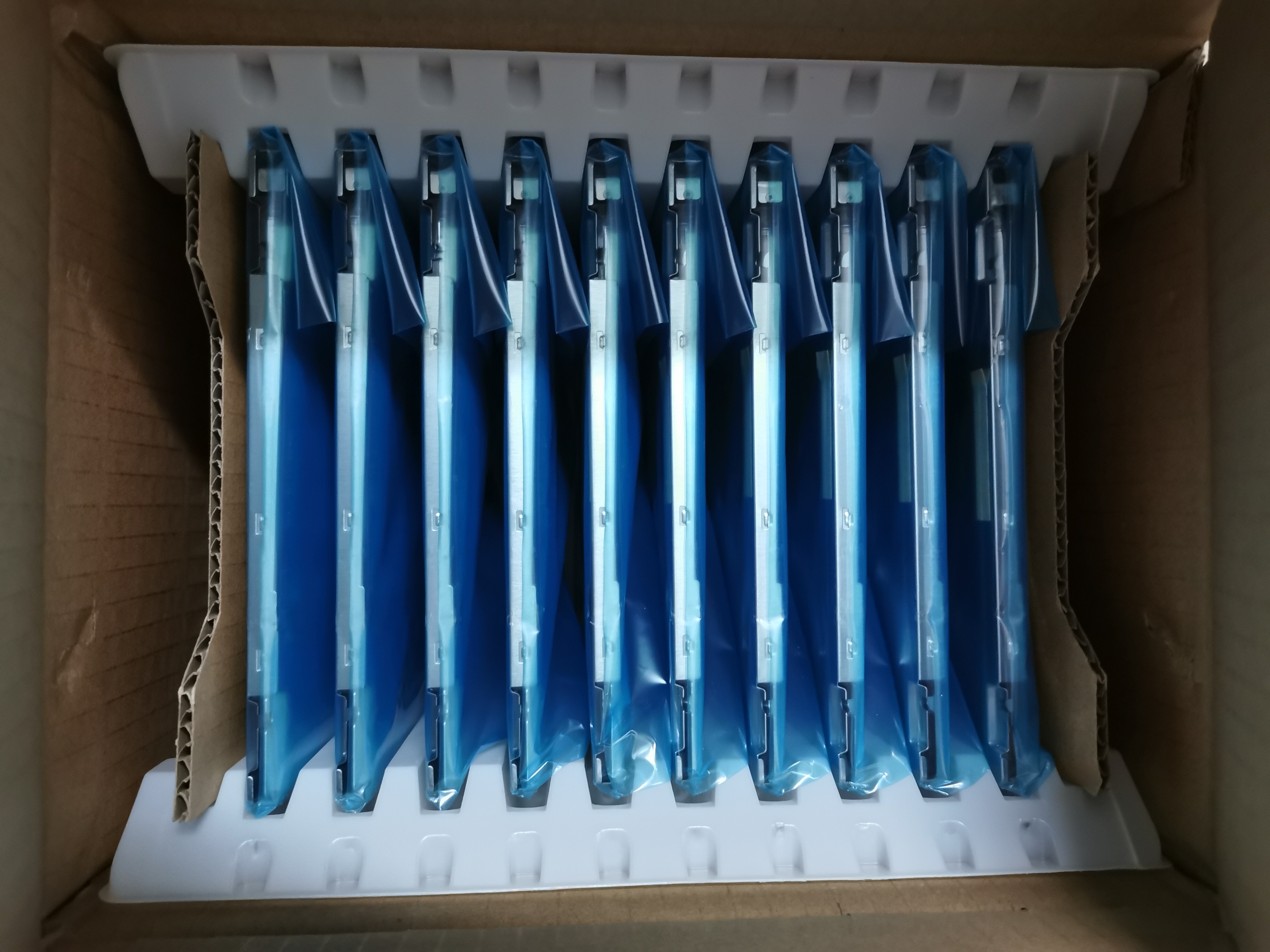

NL160120AC27-32 NLT 21.3INCH 900CD/M2 LCM 1600×1200 1600×1200RGB WLED LVDS Operating Temperature: 0 ~ 60 °C INDUSTRIAL L Images
|
