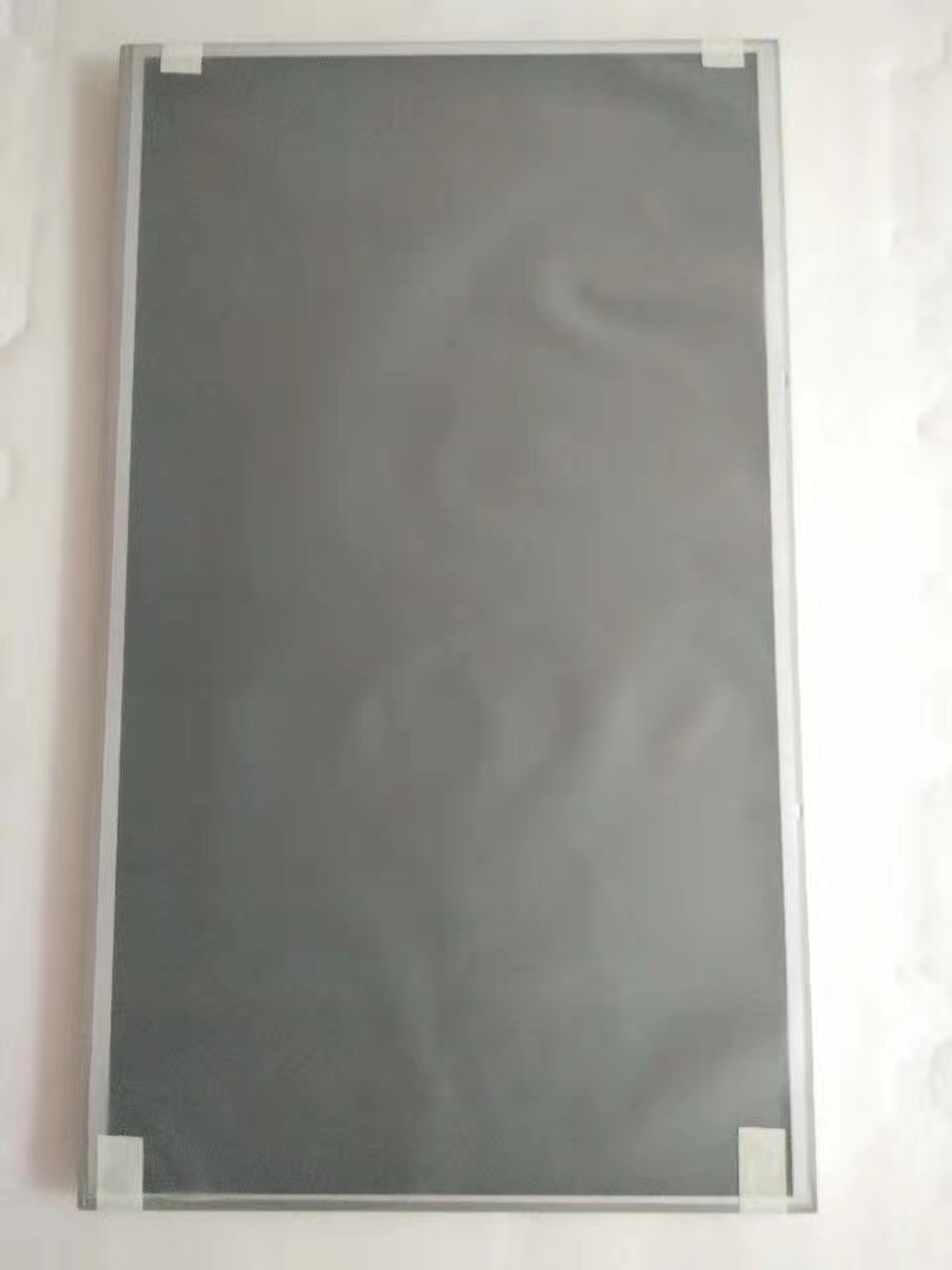

23.6" 1920(RGB)×1080 250cd/m2 TFT LCD Panel Innolux M236HJJ-L30

Brand Name : INNOLUX

Model Number : M236HJJ-L30

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : M236HJJ-L30

BRAND : INNOLUX

SIZE : 23.6INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 93PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Contact Now

Innolux M236HJJ-L30 Application Details

Basic Info : Panel Brand Panel Model M236HJJ-L30
Diagonal Size 23.6" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State Vibration Rating -

Innolux M236HJJ-L30 Mechanical Details

Pixel Features : Pixel Format 1920(RGB)×1080 [FHD] Dot Pitch 0.0905×0.2715 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.2715×0.2715 mm (H×V) [93PPI]
Mechanical Size : Display Area 521.28×293.22 mm (H×V) Bezel Area 525.22×297.22 mm (H×V)
Outline Dim. 544.8×320.5 mm (H×V) Outline Depth 8.3/11.5 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style Normal bezel
Holes & Brackets : Side mounting holes (4-M3) on up, down bezel
Other Features : Weight 2.31±0.11Kgs Surface Antiglare (Haze 3%), Hard coating (3H)

Innolux M236HJJ-L30 Optical Details

Basic Information : Brightness 250 cd/m² (Typ.) Contrast Ratio 3000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode Super MVA, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 10 (Typ.)(G to G) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.33/1.39 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 94% coverage
Adobe RGB 73% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux M236HJJ-L30 Backlight Details

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 30K(Min.) (Hours)
Replacement - Amount 4 strings Position Edge light type (Left side)
Lamp Electrical : Voltage Input 31.0/35.0V (Typ./Max.) Current Input 95.0/110.0mA (Typ./Max.)
Consumption 11.78/13.3W (Typ./Max.)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
FCN WM13-406-063N 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC

Innolux M236HJJ-L30 Interface Details

Signal Systerm : LVDS (2 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 5.0V (Typ.) Current Input 1.18/1.4A (Typ./Max.)
Consumption 5.7/7.0W (Typ./Max.)
Interface Features : Type Connector Position
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
P-TWO 187098-30091 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A

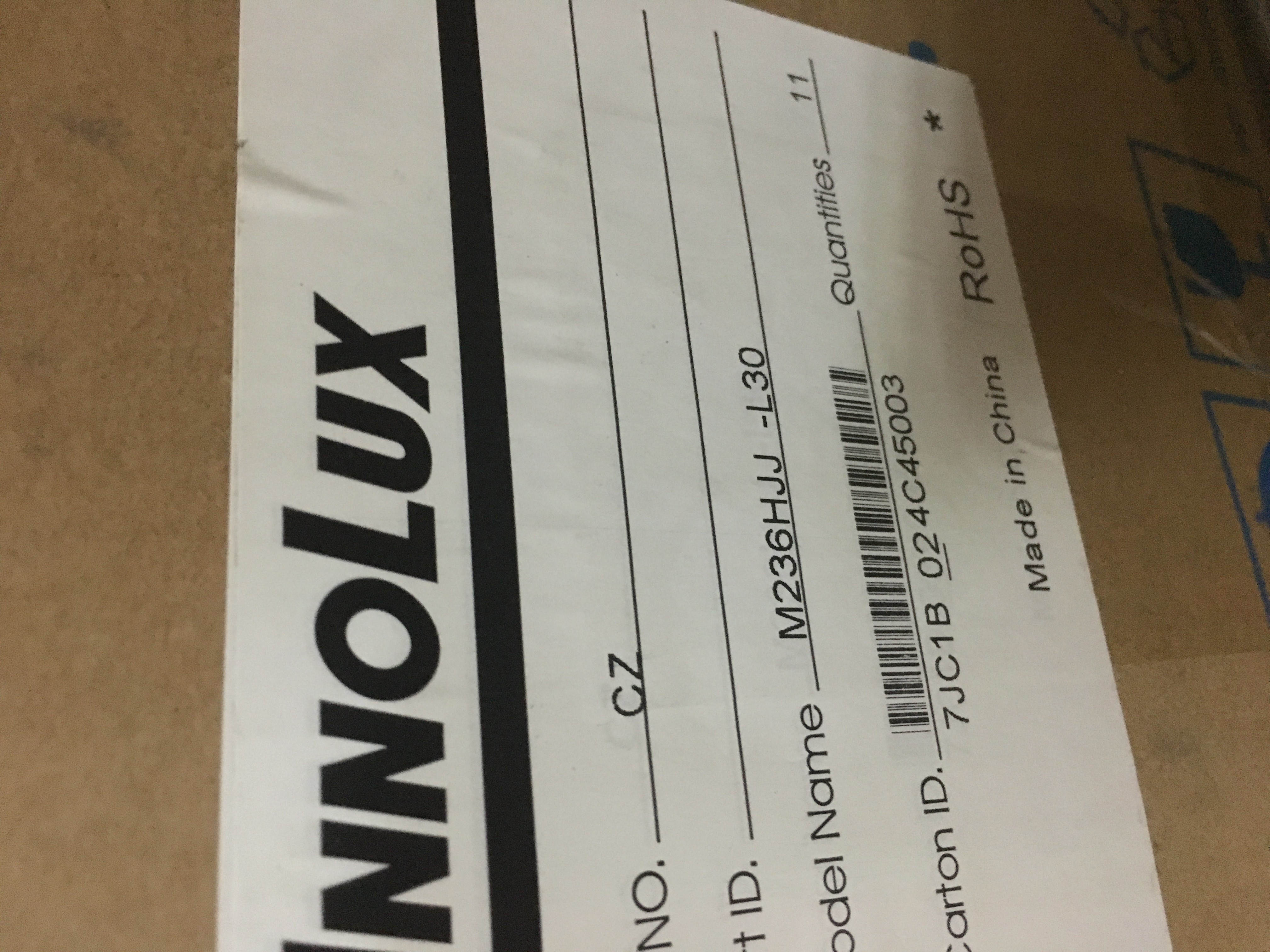

Innolux M236HJJ-L30 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
11 pcs / box 33 Kgs 620×348×430 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
