TCG057VGLBB-G20 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: TCG057VGLBBG20 Kyocera 57INCH LCM 640480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

TCG057VGLBB-G20 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY Manufactures

Brand Name : Kyocera

Model Number : TCG057VGLBB-G20

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : TCG057VGLBB-G20

BRAND : Kyocera

RESOLUTION : 640×480RGB

SIZE : 5.7INCH

BRIGHTNESS : 200 cd/m² (Typ.)

Signal Type : Parallel RGB (1 ch, 6-bit) , 40 pins Connector

Backlight : WLED , 40K hours , With LED Driver

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG057VGLBB-G20 Application Details

Basic Information :	Brand		Model	TCG057VGLBB-G20
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	5.7"	Alias	-
Environment :	Storage Temp.	-30 ~~ 80 °C	Operating Temp.	-20 ~~ 70 °C
Environment :	RoHS		Vibration	-

Kyocera TCG057VGLBB-G20 Mechanical Details

Pixel Features :	Resolution	640(RGB)×480, VGA	Dot Pitch(mm)	0.060×0.180 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.180×0.180 (H×V) [141PPI]
Mechanical Size :	Active Area(mm)	115.2(H) × 86.4(V)	Bezel Area(mm)	117.2(H) × 88.4(V)
Mechanical Size :	Outline Dim.(mm)	127.2(H) × 100.4(V)	Depth(mm)	4.79/7.25 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Touch Panel :	Touch Points	-	Touch Panel	4-wire Resistive Touch
Mounting :	Without
Other Spec :	Weight	135g (Typ.)	Treatment	Glare (Haze 0%)

Kyocera TCG057VGLBB-G20 Optical Details

Basic Information :	Luminance(cd/m²)	200 (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥5)	Display Mode	TN, Normally White, Transmissive
	Best View on	-	Response(ms)	10/25 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.330; Y:0.350	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	5598K	White Uniformity	-
1931 Color Gamlt :	NTSC Ratio	52%	sRGB	70% coverage
	Adobe RGB	54% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG057VGLBB-G20 Electronics Details

Reverse Scan :	Yes (U/D, L/R)

Kyocera TCG057VGLBB-G20 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	170/220mA (Typ./Max.)
Signal Type :	Parallel RGB (1 ch, 6-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	IRISO	IMSA-9681S-40A-GF	1 pcs	40 pins	0.5 mm

Kyocera TCG057VGLBB-G20 Backlight Details

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	40K(Typ.) (Hours)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	3.0/5.5V (Min./Max.)		Current Supply	-

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TCG057VGLBB-G20 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

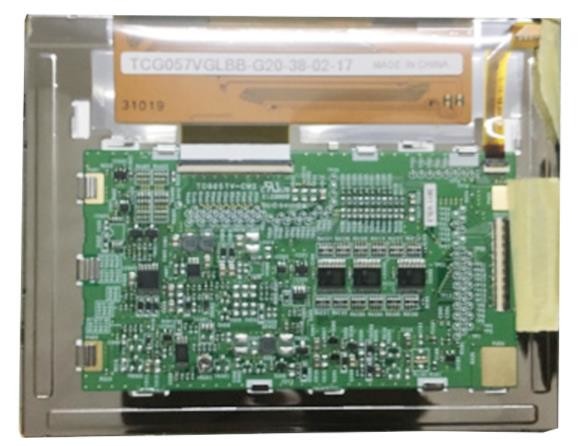

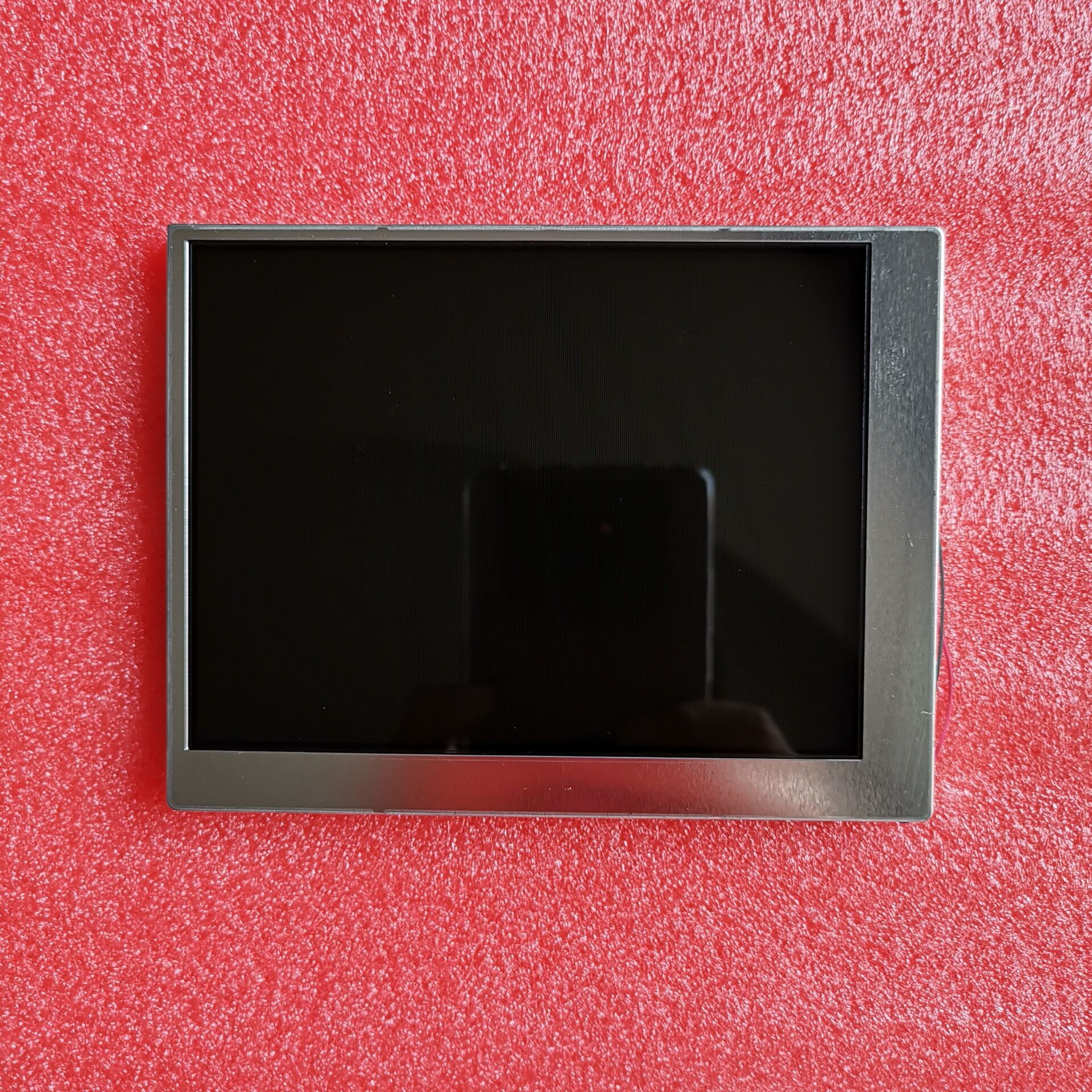

TCG057VGLBB-G20 Kyocera 5.7INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY Images
