T-51750GD065J-LW-AQN Kyocera 6.5INCH LCM 640×480RGB 600NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: T51750GD065JLWAQN Kyocera 65INCH LCM 640480RGB 600NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

T-51750GD065J-LW-AQN Kyocera 6.5INCH LCM 640×480RGB 600NITS WLED TTL INDUSTRIAL LCD DISPLAY Manufactures

Brand Name : Kyocera

Model Number : T-51750GD065J-LW-AQN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-51750GD065J-LW-AQN

BRAND : Kyocera

SIZE : 6.5INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 600 cd/m² (Typ.)

Interface Type : Parallel RGB (1 ch, 6-bit) , 31 pins Connector

Light Source : WLED [8S2P×2CN] , W/O Driver

TEMPERATURE RANGE : Operating Temperature: -20 ~ 70 °C

Contact Now

OPTREX T-51750GD065J-LW-AQN Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		T-51750GD065J-LW-AQN	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-20 ~ 70 °C	-
Designed For :

OPTREX T-51750GD065J-LW-AQN Mechanical Features

Panel Size :	6.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.069×0.207 mm	0.207×0.207 mm [122PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	132.48×99.36 mm	135.46×101.9 mm	158×120.36 mm	12.15 (Typ.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	-	Without touch controller	-	4-wire Resistive Touch
Fixation :	Face mounting holes (4-R1.75)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	280g (Typ.)	Antiglare (Haze 9%)

OPTREX T-51750GD065J-LW-AQN Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	600 cd/m² (Typ.)	TN, Normally White, Transmissive	300:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	55/55/30/60 (Typ.)(CR≥10)	6 o'clock	15/16 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6022K	262K (6-bit)	X:0.320; Y:0.350
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	39%	53%	40%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	40%	29%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.43 (Max.)(5 points)

OPTREX T-51750GD065J-LW-AQN Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (180°)

OPTREX T-51750GD065J-LW-AQN Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	240/180mA (Typ.)(ICC)		3.3/5.0V (Typ.)(VCC)			-
Voltage for Display Signals :	0≤VIL≤0.8V; 2.4V≤VIH≤5.5V
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	Parallel RGB (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	HRS	DF9B-31P-1V	1 pcs	1.0 mm	31 pins	DRGB-31P1C6B-010F

OPTREX T-51750GD065J-LW-AQN Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Top and Bottom)	2 strings × 2CN	8S2P×2CN	-	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	35mA (Typ.)		28.8/32V (Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	SHLP-06V-S-B	2 pcs	1.0 mm	6 pins	BLE-6PINS-AANNCC

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-51750GD065J-LW-AQN Kyocera 6.5INCH LCM 640×480RGB 600NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

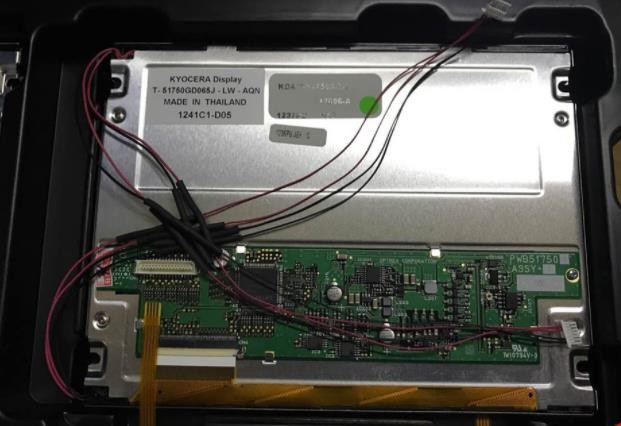

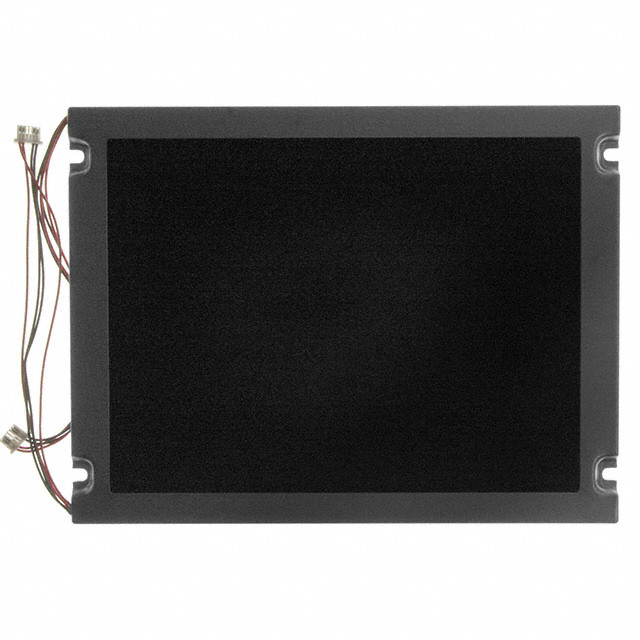

T-51750GD065J-LW-AQN Kyocera 6.5INCH LCM 640×480RGB 600NITS WLED TTL INDUSTRIAL LCD DISPLAY Images
