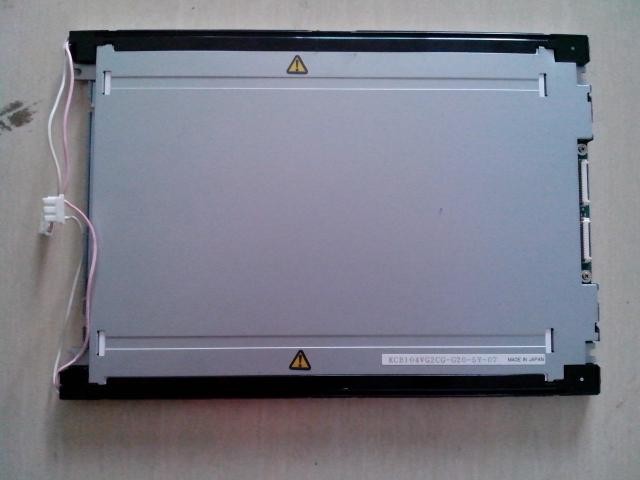

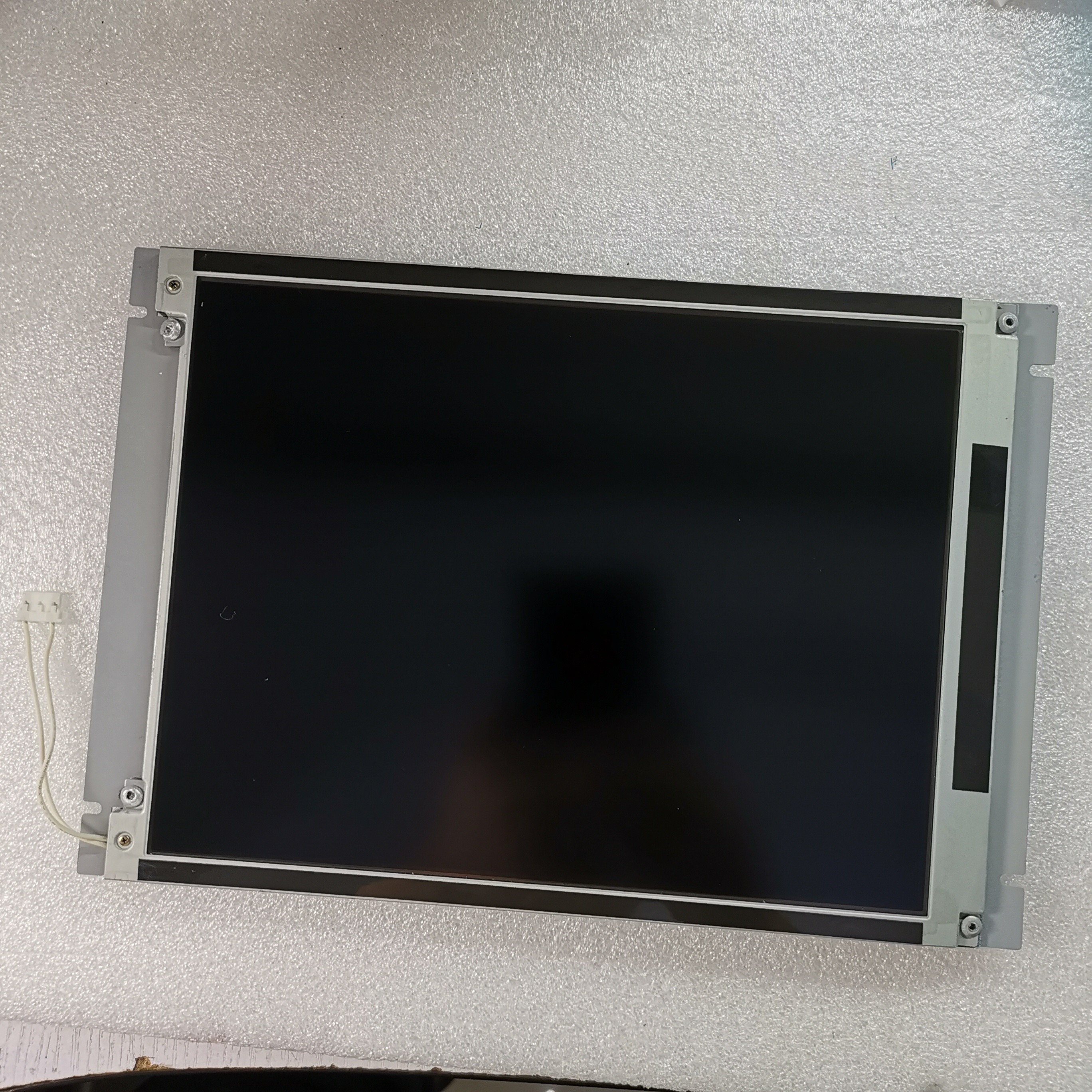

KCB104VG2CA-A44 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : KCB104VG2CA-A44

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCB104VG2CA-A44

BRAND : Kyocera

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 150 cd/m²

Type : CSTN-LCD , LCM

Light Source : CCFL [2 pcs] , 60K hours , Optional

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C

Contact Now

Kyocera KCB104VG2CA-A44 Application Details

Basic Information :
Brand

KCB104VG2CA-A44Model
Type
CSTN-LCD , LCM
Used For

10.4 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
Vibratio

n

Kyocera KCB104VG2CA-A44 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.110×0.330 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.330×0.330 (H×V) [76PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
217.2(H) × 164.4(V)
Outline Dim.(mm)
264(H) × 183(V)
Depth(mm)
8.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-R1.7)
Other Spec :
Weight
540g (Typ.)
Treatment
Antiglare

Kyocera KCB104VG2CA-A44 Optical Details

Basic Information :
Luminance(cd/m²)
150 (Typ.)
Contrast Ratio
30:1 (Typ.) (Transmissive)
Viewing Angle
45/45/35/20 (Typ.)(CR≥2)
Display Mode
STN, Normally Black, Transmissive
Best View on
-
Response(ms)
16/80 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
Color
Color Temperature
6638K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
36%
sRGB
50% coverage
Adobe RGB
38% coverage
DCI-P3
37% coverage
Rec.2020
27% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCB104VG2CA-A44 Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240

Kyocera KCB104VG2CA-A44 Interface Detail

Signal Electrical :
Voltage Supply
3.3/5.0V (Typ.)(VDD)
Current Supply
71/51mA (Typ.)(3.3V/5.0V)(IDD)
Signal Type :
Parallel Data (8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
molex
53261-1510
1.25 mm
15 pins
1 pcs
PD-29P1C8B-010A
molex
53261-1410
1.25 mm
14 pins
1 pcs

Kyocera KCB104VG2CA-A44 Backlight Details

Backlight Features :
Type
CCFL
Quantity
2 pcs
Position
Edge light type (Top and Bottom)
Replacement
-
Shape
Straight
Life Time
60K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
520V (Typ.)
Current Supply
2.0/4.5/6.0mA (Min./Typ./Max.)
Frequency
40/100KHz (Min./Max.)
Startup Voltage
845/1270V Max.)(Ta=+25/0℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HONDA
QZ-19-3F01
3 pins
2 pcs
BLL-3PINS-LNH
Backlight Driver :
Optional

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
