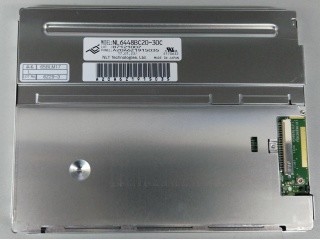

NL6448BC20-30C 6.5 INCH NEC TFT-LCD 640(RGB)×480 (VGA) 122PPI PIXEL -30 ~ 80 °C industrial LCD panel
1. Main Information:
The NL6448BC20-30C is a 6.5 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, backlight driver optional , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Ultra High Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse, 6/8 bit , T-EVT, ColorXcell. Based on its features, Panelook recommend that this model be applied to Industrial, Outdoor High Brightness etc
2. NEC NL6448BC20-30C Mechanical Features
| Panel Size : | 6.5 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 132.48×99.36 mm | 135.5×102.4 mm | 153×118 mm | 8.2±0.5 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Side mounting holes (4-M2) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 155/165g (Typ./Max.) | Clear, Hard coating (2H), Antireflection |
3.NEC NL6448BC20-30C Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 1000 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 80/80/80/80 (Typ.)(CR≥10) | - | 3/15 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 57% | 42% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 42% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
4.NEC NL6448BC20-30C Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type (Top side) | 4 strings | 4 strings | 70K(Typ.) | Replaceable (65LHS15) |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
| 50/55mA (Typ./Max.) | 13.2/15.0/17.0V (Min./Typ./Max.) | |
| Interface Features : | Position | Type | WLED Driver |
| - | Connector | Optional |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM08B-SRSS-TB | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-ACACACAC |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
