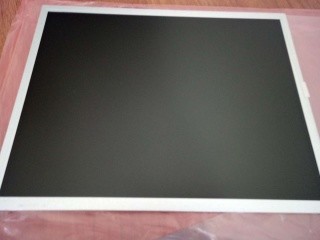

15 Inch Upside I/F TFT LCD Panel HM150X01-102 With LED Driver Use For Medical
1. Main Information:
BOE Technology Group Co., Ltd.HM150X01-102 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte . Based on its features,this model be applied to Industrial, Medical Imaging etc
2. BOE HM150X01-102 Mechanical Details: | Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 11.3/11.9 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec | Weight | 1.04Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
3. BOE HM150X01-102 Mechanical Details:
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 11.3/11.9 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.04Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
4. BOE HM150X01-102 Backlight Details:
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 7S4P | Life Time | 50K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 24.3/27.0/29.7V (Min./Typ./Max.) | Current Supply | 180mA (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-03L | 1 pcs | 5 pins | 1.25 mm | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | TBD |
| Consumption | TBD |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
