LD550EUE-FHC1 LG Display 55" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG DISPLAY

Model Number : LD550EUE-FHC1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LD550EUE-FHC1

BRAND : LG DISPLAY

SIZE : 55 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 40PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LD550EUE-FHC1 Application Features

Basic Information : Brand Name Model Name Type Model Alias
LD550EUE-FHC1 a-Si TFT-LCD , LCM LD550EUE (FH)(C1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 50 °C -20 ~ 60 °C

LG Display LD550EUE-FHC1 Mechanical Features

Screen Size : 55"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.210×0.630 mm 0.630×0.630 mm [40PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
1209.6×680.4 mm 1214.2×685.0 mm 1232×708.9 mm 17.0/28.6 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape / Portrait
Other Spec : Mass Panel Cover Surface Treatment
13.0/13.7Kgs (Typ./Max.) - Antiglare (Haze 1%), Hard coating (3H)

LG Display LD550EUE-FHC1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
300 cd/m² (Typ.) S-IPS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Min.)(CR≥10) 12 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
9966K 16.7M (8-bit) X:0.281; Y:0.288
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
70% 95% 72%
DCI-P3 Coverage Rec.2020 Coverage Remarks
73% 52% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.54 (Max.)(9 points)

LG Display LD550EUE-FHC1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 50K(Typ.) 2 strings 2 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
175.8/191.5/207.3V (Min./Typ./Max.) 155mA (Typ.) 59.4/64.3W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
YEONHO SMH200-H07M 1 pcs 7 pins 2.0 mm BLE-7PINS-CNANCNA

LG Display LD550EUE-FHC1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
12.0V (Typ.) 225/293mA (Typ./Max.) 2.7/3.5W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (2 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE FI-RXE51S-HF 1 pcs 51 pins 0.5 mm

LG Display LD550EUE-FHC1 Packing Features

Package Box : Amount Weight Size (L×W×H)
22 pcs / box - 1440×1140×955 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LD550EUE-FHC1 LG Display 55" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

WLED TTL Industrial Lcd Display



WLED LVDS Lcd Video Panel



Hard Coating Industrial TFT Display


LD550EUE-FHC1 LG Display 55" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY Manufactures

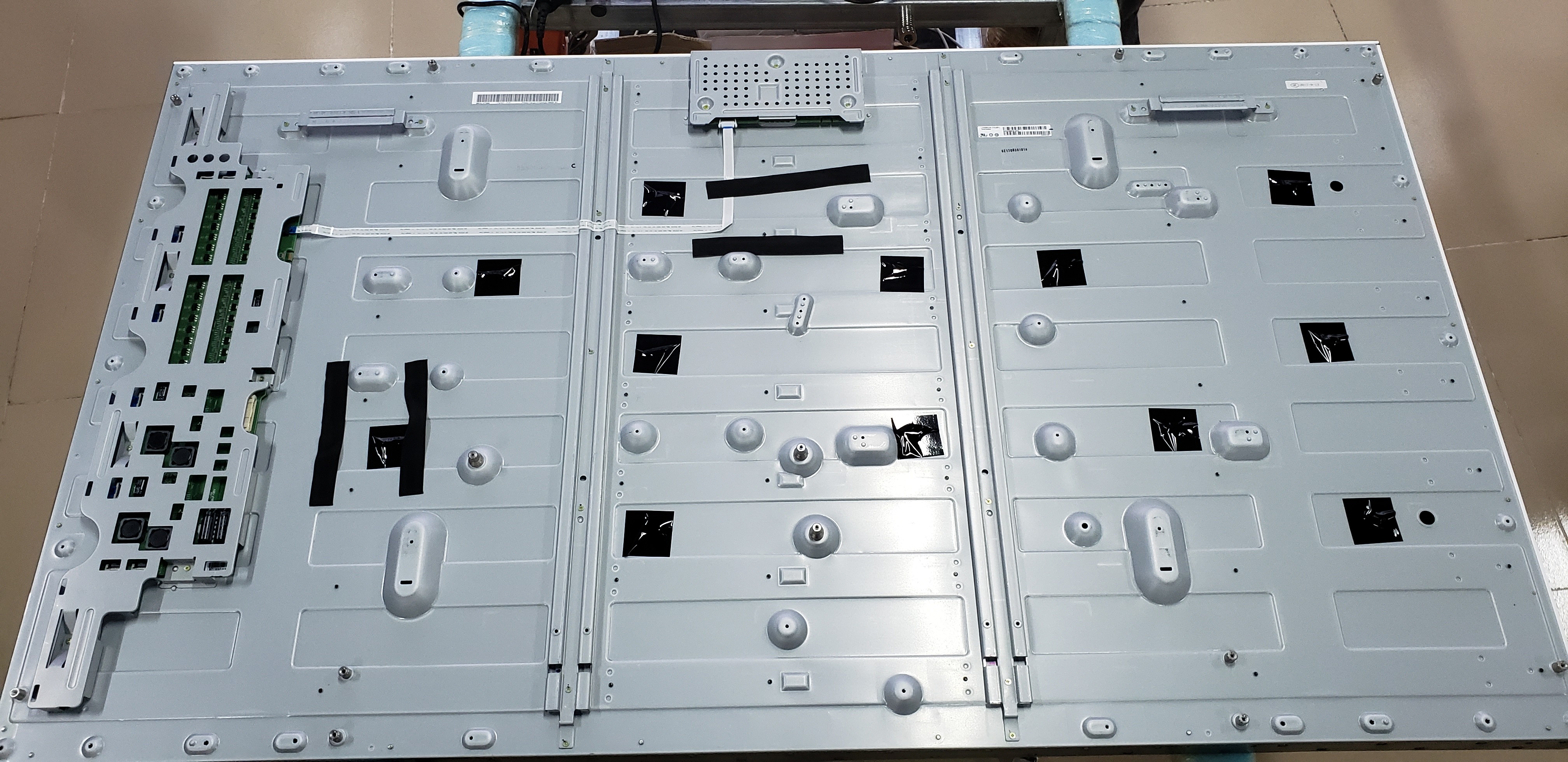

LD550EUE-FHC1 LG Display 55" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY Images
