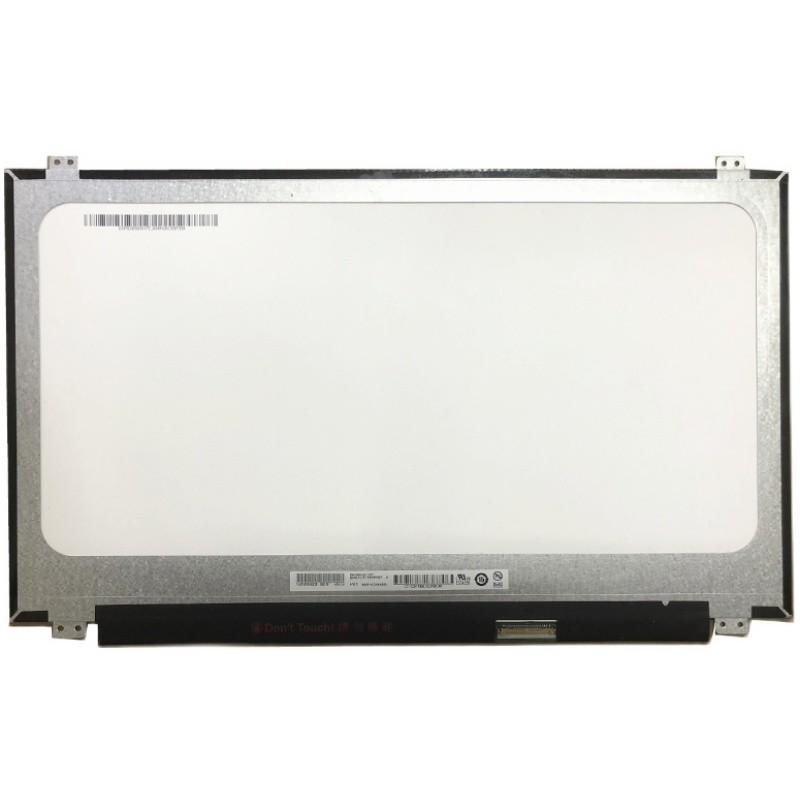

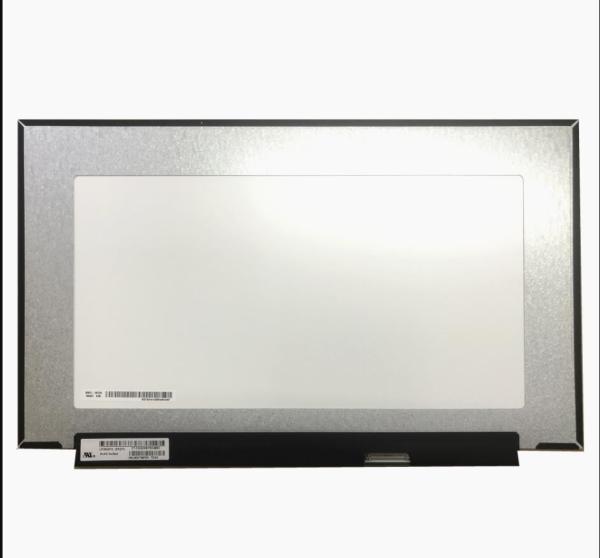

LP156WFG-SPF2 LG Display 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Name: LP156WFGSPF2 LG Display 156quot 1920RGB1080 300 cdm INDUSTRIAL LCD DISPLAY
Brand: LG DISPLAY
Price: 1 USD

LP156WFG-SPF2 LG Display 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY Manufactures

Brand Name : LG DISPLAY

Model Number : LP156WFG-SPF2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP156WFG-SPF2

BRAND : LG DISPLAY

SIZE : 15.6 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 141PPI

VIEWING ANGLEG : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP156WFG-SPF2 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LP156WFG-SPF2	a-Si TFT-LCD , LCM	LP156WFG (SP)(F2), LGD05C0
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP156WFG-SPF2 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	300 (Typ.)	80/80/80/80 (Min.)(CR≥10)	5 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	800 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	99%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.40/1.60 (Max.)(5/13 points)

LG Display LP156WFG-SPF2 Mechanical Features

Panel Size :	15.6"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1080 [FHD]	RGB Vertical Stripe	0.17925×0.17925 [141PPI]	0.05975×0.17925
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	344.16(H) × 193.59(V)	-	350.66(H) × 216.26(V)	2.45/2.6 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	Slim (PCBA Flat, T≤3.2mm)
Mounting :	Without
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	310g (Max.)	-	Antiglare, Hard coating (3H)

LG Display LP156WFG-SPF2 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	12K(Min.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Included in panel signal interface
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	6.0/12.0/21.0V (Min./Typ./Max.)		317/321mA (Typ./Max.)			3.8/3.85W (Typ./Max.)

LG Display LP156WFG-SPF2 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		560/667mA (Typ./Max.)			1.85/2.2W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	JAE	HD1S040HA2	0.5 mm	40 pins	1 pcs

LG Display LP156WFG-SPF2 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	-	478×365×328 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
