BOE NE156QHM-NZ1 Application Details
| Basic Information : | Brand | | Model | NE156QHM-NZ1 |
| Type | LCM Oxide TFT-LCD | Used For | |
| Screen Size | 15.6" | Alias | BOE0A67 |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | | Vibration | 1.5G (14.7 m/s²) |
BOE NE156QHM-NZ1 Mechanical Details
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.04482×0.13446 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.13446×0.13446 (H×V) [188PPI] |
| Mechanical Size : | Active Area(mm) | 344.22(H) × 193.62(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 350.66(H) × 216.14(V) | Depth(mm) | 2.4/2.6 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Spec : | Weight | 300g (Max.) | Treatment | Antiglare, Hard coating (3H) |
BOE NE156QHM-NZ1 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 9 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Max.)(5/13 points) |
| 1931 Color Gamut : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 80% coverage |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NE156QHM-NZ1 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 621mA (Typ.) |
| Consumption | 2.05W (Max.) |
| Signal Type : | eDP (4 Lanes), eDP1.4, HBR3 (8.1G/lane) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20682-040E-02 | 1 pcs | 40 pins | 0.4 mm |
BOE NE156QHM-NZ1 Backlight Details
| Backlight Features: | Shape | 5 strings | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 10S5P | Life Time | 15K(Min.) (Hours) |
| Interface Features : | Position | - | Type | Included in signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - |
| Consumption | 3.8W (Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.22(W)×193.62(H) mm, outline size of 350.66(W)×216.14(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE156QHM-NZ1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE156QHM-NZ1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
|
|

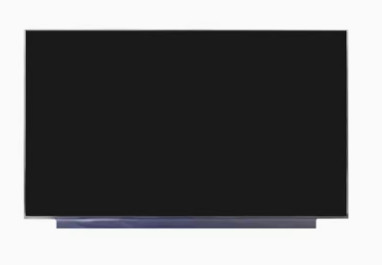

NE156QHM-NZ1 BOE 15.6" 2560(RGB)×1440, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
