BOE DV150X0M-N10 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | DV150X0M-N10 | a-Si TFT-LCD , LCM | - |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | -20 ~ 70 °C | -20 ~ 70 °C |
BOE DV150X0M-N10 Mechanical Features
| Screen Size : | 15.0" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | 306.5×230.1 mm | 326.5×253.5 mm | 9.7/10.0 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape / Portrait | |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 930g | - | Antiglare (Haze 25%), Hard coating (3H) |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
BOE DV150X0M-N10 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 350 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 95% | 73% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 77% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.33 (Max.)(9 points) |
BOE DV150X0M-N10 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type (Bottom side) | 50K(Min.) | 12S4P | 4 strings | - |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
| 36±3.6V | 55mA (Typ.) | 7.92/8.71W (Typ./Max.) |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| With LED Driver | Connector | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| CviLux | CI4205M2HRP-NH | 1 pcs | 5 pins | 1.25 mm | |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
| 10.8/12.0/12.6V (Min./Typ./Max.) | 600/775/850mA (Min./Typ./Max.) | 9.3/10.2W (Typ./Max.) |
BOE DV150X0M-N10 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3V (Typ.) | 455/900mA (Typ./Max.) | 1.5/3.0W (Typ./Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| LVDS (1 ch, 8-bit) | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSB240420HE | 1 pcs | 20 pins | 1.25 mm |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10(D) mm, viewing area size of 306.5(W)×230.1(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 930g. As a ADS, Normally Black, Transmissive LCM product, DV150X0M-N10 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. DV150X0M-N10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
|
|

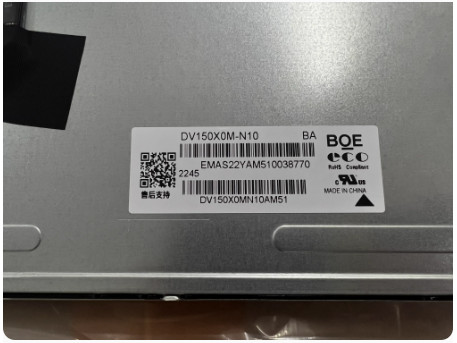

DV150X0M-N10 BOE 15.0" 1024(RGB)×768, 350 cd/m² INDUSTRIAL LCD DISPLAY Images
|
