BOE NT156WHM-N32 Application Features
| Basic Information : | Manufacturer | Panel Model 14 Compatible | Panel Type | Alias |
| | NT156WHM-N32 | a-Si TFT-LCD , LCM | BOE06A4 |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
BOE NT156WHM-N32 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 220 (Typ.) | 45/45/20/40 (Typ.)(CR≥10) | 12 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 50% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.54 (Max.)(5/13 points) |
BOE NT156WHM-N32 Mechanical Features
| Panel Size : | 15.6" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1366(RGB)×768 [WXGA] | RGB Vertical Stripe | 0.252×0.252 [100PPI] | 0.084×0.252 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 344.232(H) × 193.536(V) | - | 359.5(H) × 223.8(V) | 3.05/3.2 (Typ./Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs |
| Other Detail : | Weight | Panel Cover | Treatment |
| 370g (Max.) | - | Glare (Haze 0%) |
BOE NT156WHM-N32 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type (Bottom side) | 9S4P | 4 strings | 15K(Min.) | - |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
| 27.9V (Max.) | 20mA (Typ.) | |
| Interface Features : | Position | Backlight Driver | Type |
| - | With LED Driver | Included in signal interface |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption |
| 5.0/12.0/21.0V (Min./Typ./Max.) | - | 2.6W (Max.) |
BOE NT156WHM-N32 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 3.3V (Typ.) | 197/300mA (Typ./Max.) | 0.65/1.0W (Typ./Max.) |
| Interface Features : | Position | Signal | Type |
| | eDP (1 Lane), eDP1.2, RBR (1.62G/lane) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 359.5(W)×223.8(H)×3.2(D) mm, with surface treament of Glare (Haze 0%), net weight of 370g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, NT156WHM-N32 can provides 220 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NT156WHM-N32 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

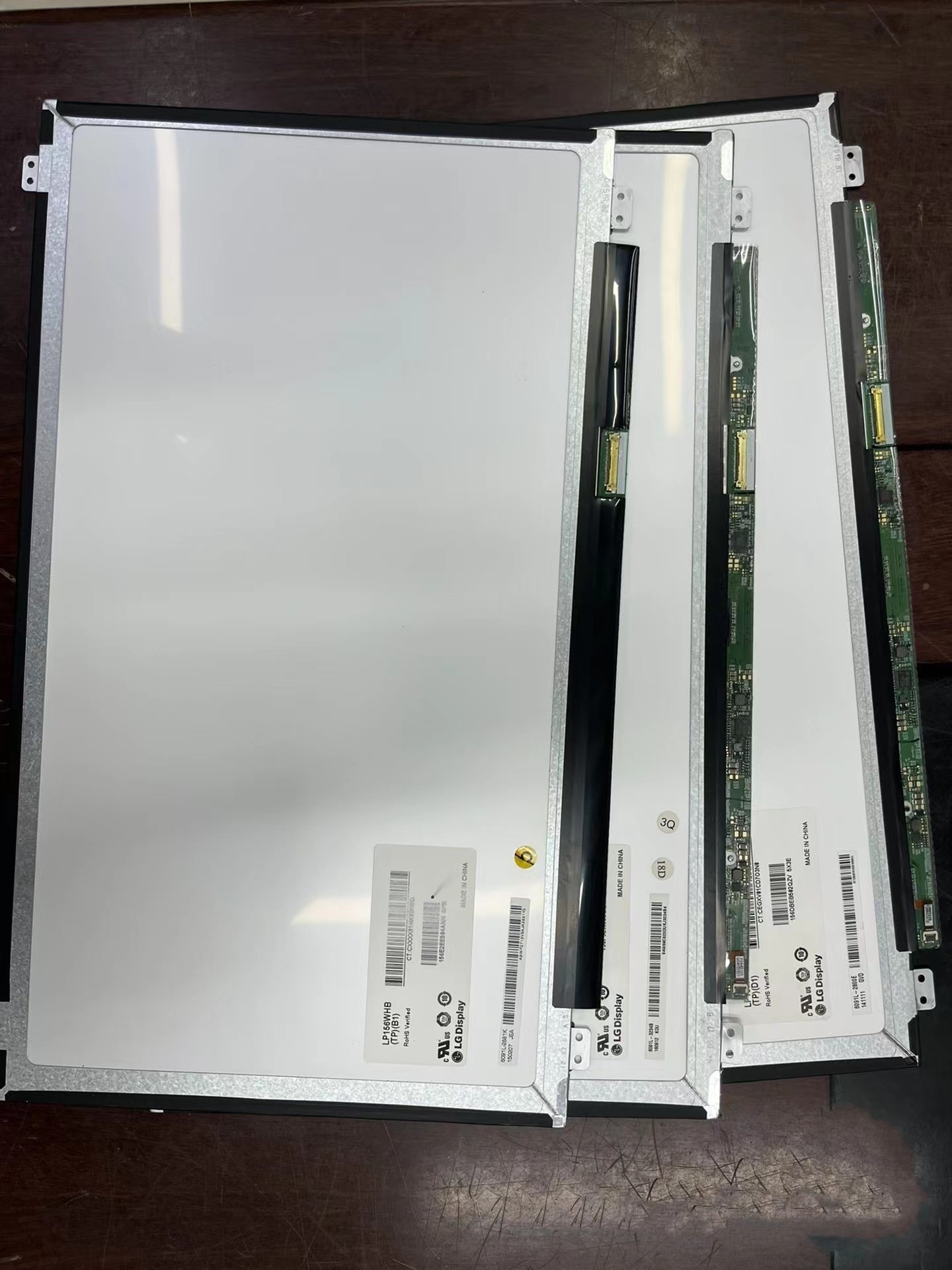

NT156WHM-N32 BOE 15.6" 1366(RGB)×768, 220 cd/m² INDUSTRIAL LCD DISPLAY Images
|
