BOE MV238FHM-N30 Application Details
| Basic Information : | Brand | | Model | MV238FHM-N30 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 23.8" | Alias | - |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
BOE MV238FHM-N30 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0915×0.2745 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2745×0.2745 (H×V) [92PPI] |
| Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | 530.2(H) × 299.6(V) |
| Outline Dim.(mm) | 540.2(H) × 315.6(V) | Depth(mm) | 9.7/14.2 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (8-M3) |
| Other Spec : | Weight | 2.24Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
BOE MV238FHM-N30 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 92% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 76% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE MV238FHM-N30 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 600/900mA (Typ./Max.) |
| Consumption | 3.0/4.5W (Typ./Max.) |
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30R-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A |
BOE MV238FHM-N30 Backlight Details
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 3 strings | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 54±3.6V | Current Supply | 70mA (Typ.) |
| Consumption | 10.58/11.34/12.1W (Min./Typ./Max.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACN |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 540.2(W)×315.6(H)×14.2(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.24Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV238FHM-N30 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 3 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV238FHM-N30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
|
|

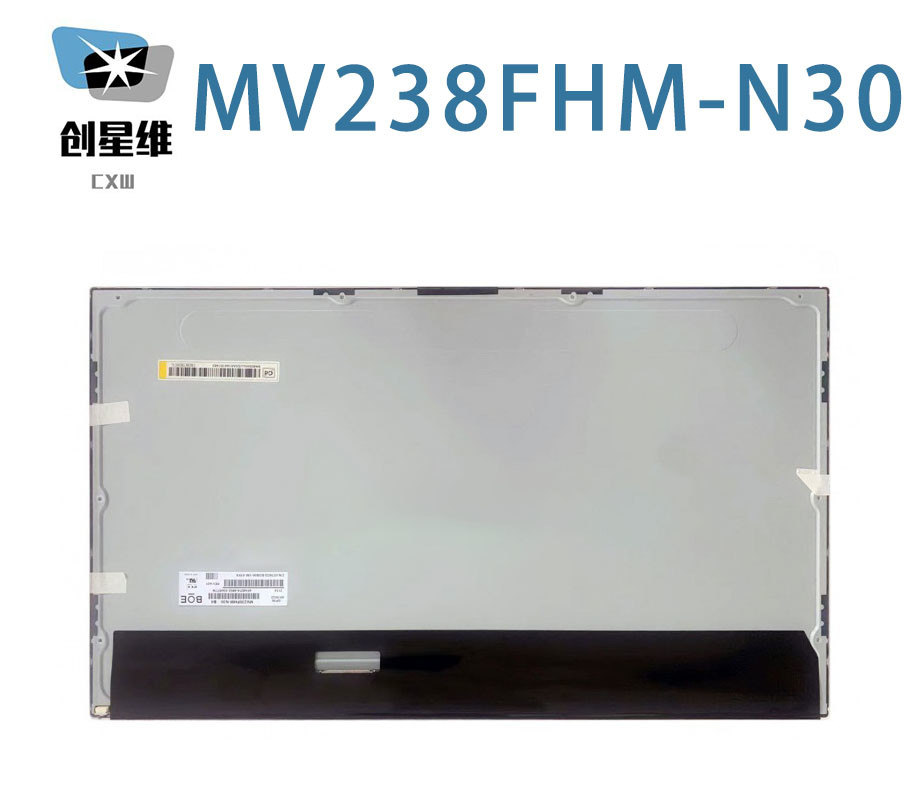

MV238FHM-N30 BOE 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLA Images
|
