BOE MV238FHM-N61 Application Details
| Basic Information : | Brand | | Model | MV238FHM-N61 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 23.8" | Alias | - |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | | Vibration | 1.5G (14.7 m/s²) |
BOE MV238FHM-N61 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0915×0.2745 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2745×0.2745 (H×V) [92PPI] |
| Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 535(H) × 313(V) | Depth(mm) | 6.75/12.5 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (15-M3) |
| Other Spec : | Weight | 2.20Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
BOE MV238FHM-N61 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0915×0.2745 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2745×0.2745 (H×V) [92PPI] |
| Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 535(H) × 313(V) | Depth(mm) | 6.75/12.5 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 3-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (15-M3) |
| Other Spec : | Weight | 2.20Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
BOE MV238FHM-N61 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 600/900mA (Typ./Max.) |
| Consumption | 3.0/4.5W (Typ./Max.) |
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30R-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A |
BOE MV238FHM-N61 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 20S4P | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 56±4V | Current Supply | 42/47mA (Typ./Max.) |
| Consumption | 9.41/10.08W (Typ./Max.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| | 3712K-Q06C-00R | 1 pcs | 6 pins | | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535(W)×313(H)×12.5(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.20Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV238FHM-N61 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 20S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV238FHM-N61 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
|
|

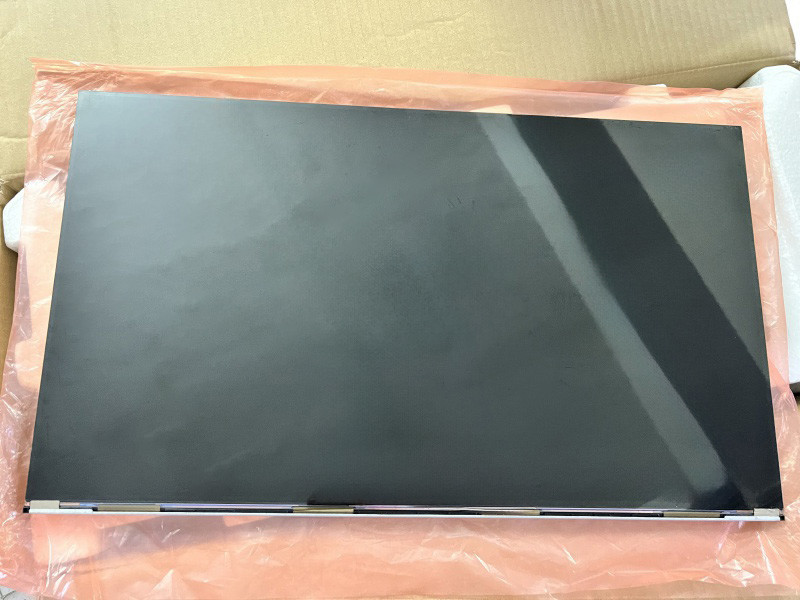

MV238FHM-N61 BOE 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
