LG Display LD550EQE-FPA2 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | LD550EQE-FPA2 | a-Si TFT-LCD , LCM | LD550EQE (FP)(A2) |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LD550EQE-FPA2 Mechanical Features
| Screen Size : | 55" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.105×0.315 mm | 0.315×0.315 mm [80PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1209.6×680.4 mm | 1214.6×685.4 mm | 1233.4×706.8 mm | 12.0/30.1 (Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape / Portrait | |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 13.9/14.6Kgs (Typ./Max.) | - | Antiglare (Haze 28%), Hard coating (2H) |
LG Display LD550EQE-FPA2 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 500 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 8 (Typ.)(G to G) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9972K | 1.07B (8-bit + Dithering) | X:0.279; Y:0.292 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 96% | 73% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.39 (Max.)(9 points) |
LG Display LD550EQE-FPA2 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 50K(Typ.) | 3 strings × 2CN | 3 strings × 2CN | - |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
| 145.7±12V | 90.0±4.5mA | 78.7±6.5W |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| No | Connector | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | HS100-L08N-N62 | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-CCCNNNNA |
| UJU | HS100-L08N-N62-A | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-ANNNNCCC |
LG Display LD550EQE-FPA2 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 12.0V (Typ.) | 1.06/1.38A (Typ./Max.) | 12.66/16.46W (Typ./Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| V-by-One 8 lane | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1233.4(W)×706.8(H)×30.1(D) mm, viewing area size of 1214.6(W)×685.4(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 13.9/14.6Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LD550EQE-FPA2 can provides 500 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 68% (NTSC). This product adopted 3 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LD550EQE-FPA2 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
|
|

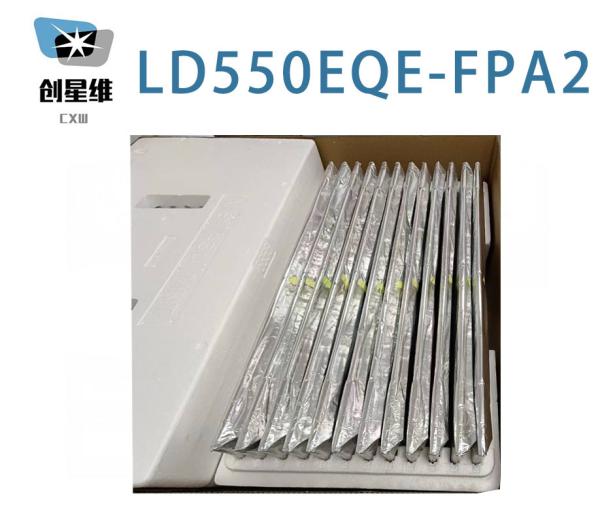

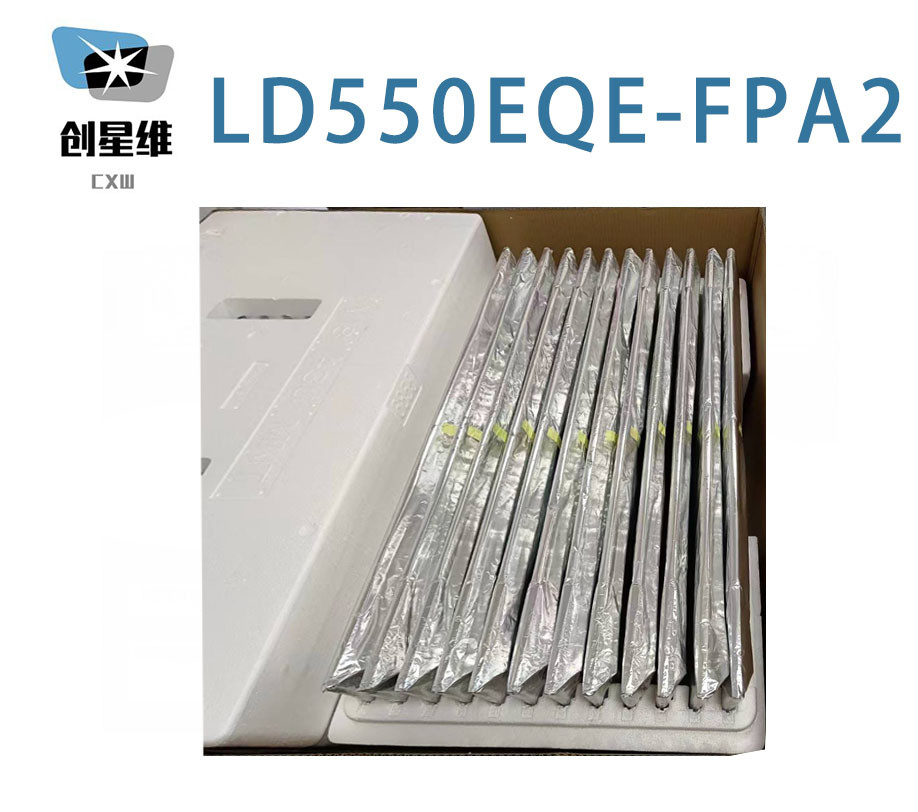

LD550EQE-FPA2 LG Display 55" 3840(RGB)×2160, 500 (Typ.)(cd/m²) INDUSTRIAL LCD DISPLAY Images
|
