IVO M125NWR1 R2 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | M125NWR1 R2 | a-Si TFT-LCD , LCM | IOV04E3 |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
IVO M125NWR1 R2 Mechanical Features
| Screen Size : | 12.5" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0675×0.2025 mm | 0.2025×0.2025 mm [125PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 276.62×155.52 mm | - | 290.5×180.9 mm | 3.0 (Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Flat, T≤3.2mm) |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 250g (Max.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Face mounting holes (2 pcs) on down slugs |
IVO M125NWR1 R2 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| - | 45/45/15/35 (Typ.)(CR≥10) | 16 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 50% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.54 (Max.)(5/13 points) |
IVO M125NWR1 R2 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 15K(Min.) | - | - | - |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| With LED Driver | Included in signal interface | - |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
| 5.0/12.0/21.0V (Min./Typ./Max.) |
IVO M125NWR1 R2 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3V (Typ.) | 0.26A (Max.) | 0.85W (Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| eDP (1 Lane) | Connector | |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-030E-0 | 1 pcs | 30 pins | 0.5 mm |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 276.62(W)×155.52(H) mm, outline size of 290.5(W)×180.9(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 250g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, M125NWR1 R2 can provides 200 cd/m² display brightness 400:1 transimissive contrast ratio, 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. M125NWR1 R2 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

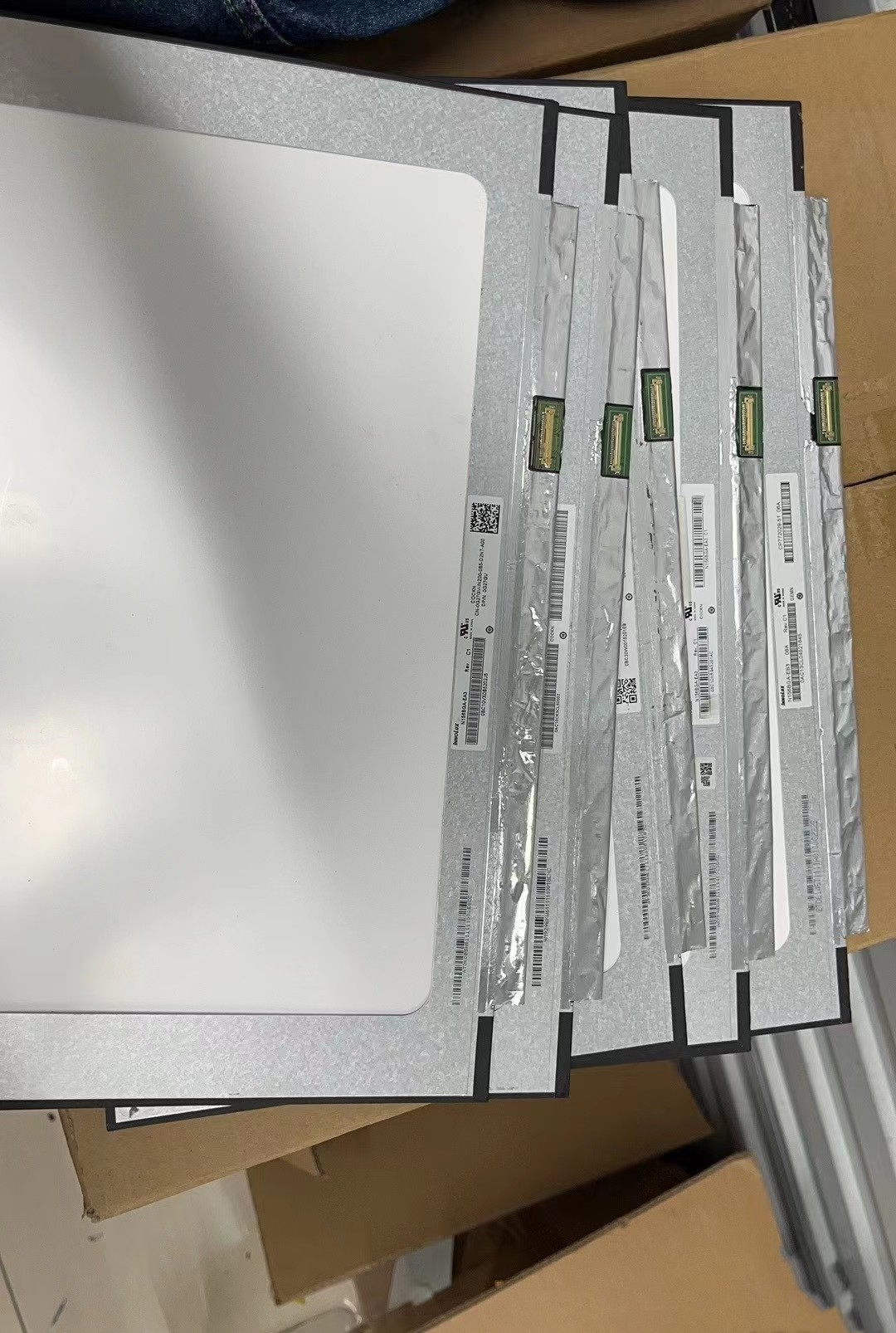

M125NWR1 R2 IVO 12.5" 1366(RGB)×768, 200 cd/m² INDUSTRIAL LCD DISPLAY Images
|
