BOE DV185WHM-NM1 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | DV185WHM-NM1 | a-Si TFT-LCD , LCM | - |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C | - |
| Application : | |
BOE DV185WHM-NM1 Mechanical Features
| Screen Size : | 18.5" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm [84PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 409.8×230.4 mm | 413.4×234.0 mm | 430.4×254.6 mm | 7.7/11.4 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 1.30Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) |
| Holes & Brackets : | Without |
BOE DV185WHM-NM1 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 250 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 99% | 77% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 78% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
BOE DV185WHM-NM1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 5.0V (Typ.) | 0.5/0.72A (Typ./Max.) | 2.5/3.6W (Typ./Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| LVDS (1 ch, 8-bit) | Connector | |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-170A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.4(W)×254.6(H)×11.4(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.30Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, DV185WHM-NM1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. DV185WHM-NM1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
|
|

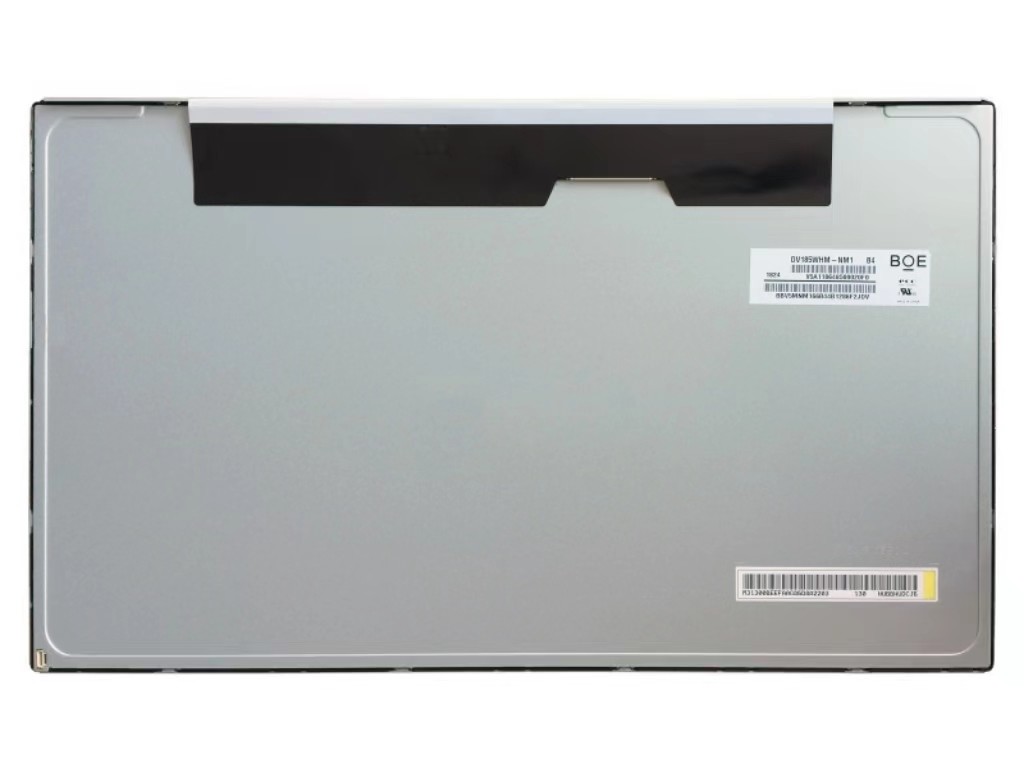

DV185WHM-NM1 BOE 18.5" 1366(RGB)×768, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
