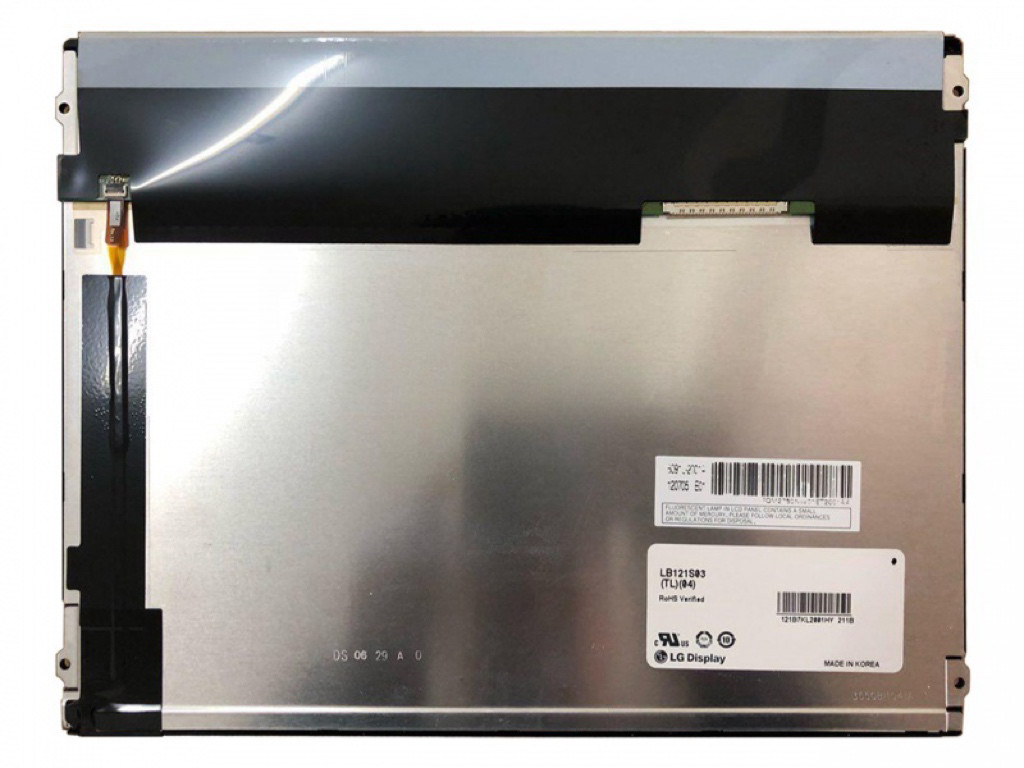

LG Display LB121S03-TL04 Mechanical Features
| Screen Size : | 12.1" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 246×184.5 mm | - | 276×209 mm | 10.6 (Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 600g (Max.) | - | Antiglare |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
LG Display LB121S03-TL04 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 50K(Min.) | - | - | - |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| With LED Driver | Included in signal interface | - |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
| 12.0V (Typ.) | 350/400mA (Typ./Max.) | 4.2/5.0W (Typ./Max.) |
LG Display LB121S03-TL04 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 6 o'clock | 70/70/55/65 (Typ.)(CR≥10) | 10/20 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7037K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.305; Y:0.320 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 95% | 73% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.45 (Typ./Max.)(5 points) |
LG Display LB121S03-TL04 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3V (Typ.) | 240/290mA (Typ./Max.) | 0.80/0.96W (Typ./Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| LVDS (1 ch, 6/8-bit) | Connector | - |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-XB30SL-HF10 | 1 pcs | 30 pins | 1.0 mm |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 276(W)×209(H)×10.6(D) mm, with surface treament of Antiglare, net weight of 600g (Max.). As a TN, Normally White, Transmissive LCM product, LB121S03-TL04 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LB121S03-TL04 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB121S03-TL04 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
|
|
